Zeiss Stemi 305 and Stemi 508
Stereomicroscopes with Integrated Illumination and High-Resolution Optics (AI)
Stereo Microscopes
Entry-Level to Advanced Apochromatic Systems Delivering Distortion-Free 3D Imaging for Lab and Industrial Use (AI)
The Stemi 305 stereomicroscope offers better integrated illumination than any other “entry level” Greenough stereomicroscope. Its compact design follows “clean desk” philosophy by incorporating an integrated power supply and hidden cables. It provides sharp, distortion free 3D images, crisp in contrast and with no preparation required.

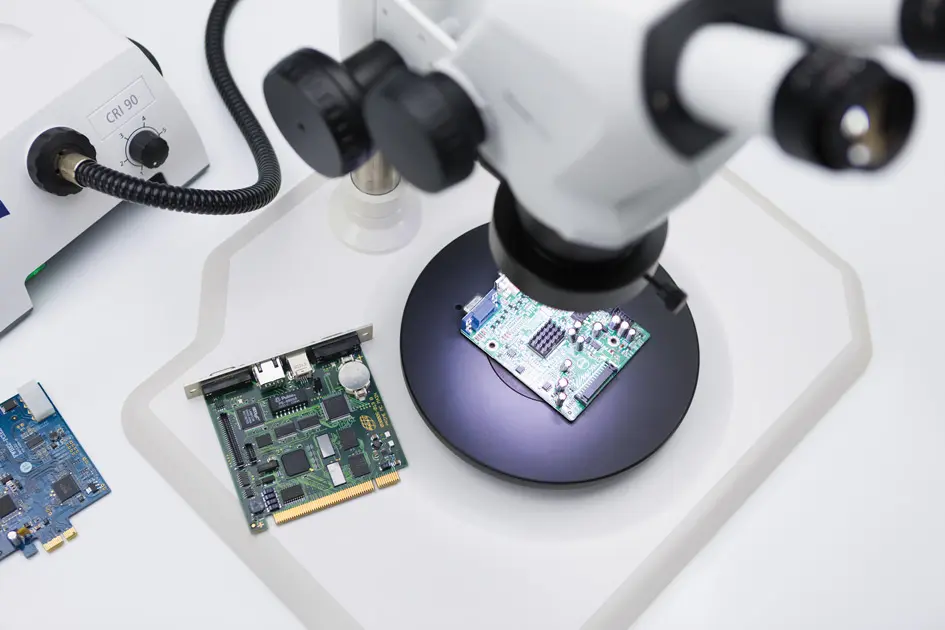

The Stemi 508 offers a complete apochromatic system and new front optics for the best resolution and high contrast. It is designed for the workloads of everyday lab use and industrial inspections. Samples are displayed in rich detail, in sharp focus, and free from distortion or color fringes.
Stemi 508 Features
- Lower viewing angle of 35° for better ergonomics than any other Greenough type stereomicroscope for a more relaxed working posture
- Continuous or click-stop zoom adjustment (with 10 click-stops)
- 10X adjustable focusing eyepieces (16X & 25X available)
- 35 mm field of view; up to 120 mm using interchangeable optics
- Utilizes integrated LED lighting or external illumination
- 8:1 zoom range, 6.3X to 50X magnification range (interchangeable optics and eyepieces allow from 2X to 250X)
- Photoport for Zeiss AxioCam cameras, video or SLR cameras
- Configurable with standard bases or boom stands
- Multiple stages available, including slide, circular ball-and-socket and rotating pol
Stemi 305 Features
- 10X adjustable focusing eyepieces (16X and 25X available)
- 5:1 zoom range, 8.0X to 40X magnification range, (interchangeable optics and eyepieces allow from 4X to 200X
- 29 mm field of view; up to 58 mm using interchangeable optics
- Multiple stages available including: slide stage, circular ball-and-socket stage, and rotating pol stage
- Integrated long-life LED illumination: vertical and oblique reflected light and transmitted light, can also use external illumination
- ESD protection feature prevents samples from being damaged by electrostatic discharge
- Conventional phototube with 50/50 split allows use with all Zeiss AxioCam microscope cameras
- Configurable with standard bases or boom stands
