TechCut 5x™
Precision High Speed Saw
Semiautomatic
A versatile, programmable sectioning machine designed to cut a wide variety and size of materials
The TechCut 5x™ precision high speed saw is a versatile, programmable machine designed to cut a wide variety and size of materials. It automatically sections materials at high speeds, increasing sample throughput.
The PLC-based system controls sample feed rate, distance and force. Closed-loop monitoring of the blade and table optimizes cutting performance and minimizes blade breakage by automatically adjusting the feed rate when variations in sample material or thickness are detected.
When sectioning is complete, the table automatically retracts the sample to the home position and stops blade rotation and coolant flow.
The unique fixturing system allows for easy changes between the T-slot table and the X-axis tables. Both table types offer a variety of
convenient table-specific fixture options.
Features
- Versatile, programmable saw for a wide variety of materials
- Accepts 3−8″ (76−203 mm) diameter blades
- Cutting capacity: up to 2.5″ (63 mm) bar stock
- Color LCD touchscreen to control all functions
- Programmable RPM, force, cut depth and feed rate
- Y-axis operation: motorized (joystick) or manual (handwheel)
- Closed loop load monitoring to reduce blade binding/breakage
- Allows either indexing or T-slot tables with a variety of fixtures
- Variable speed: 500−5,000 RPM
- 100−240 V 50/60 Hz 1 Phase
Related Products
TechCut 5x™ Accessories
The fixture design of the TechCut 5 offers variety and interchangeability that make it very easy to use. All fixtures are made of either stainless or anodized aluminum for corrosion resistance.
Lubri-Cut, High Speed Cutting Fluid
Cutting fluids enhance blade performance, extend blade life and minimize material deformation by reducing heat during sectioning.
Precision Wafering Blades
Wafering blades Wafering blades are available in Bonded, Plated or Solid Core configurations with diamond, cubic boron nitride (CBN), aluminum oxide (Al2O3) or silicon carbide (SiC) mineral.
Details

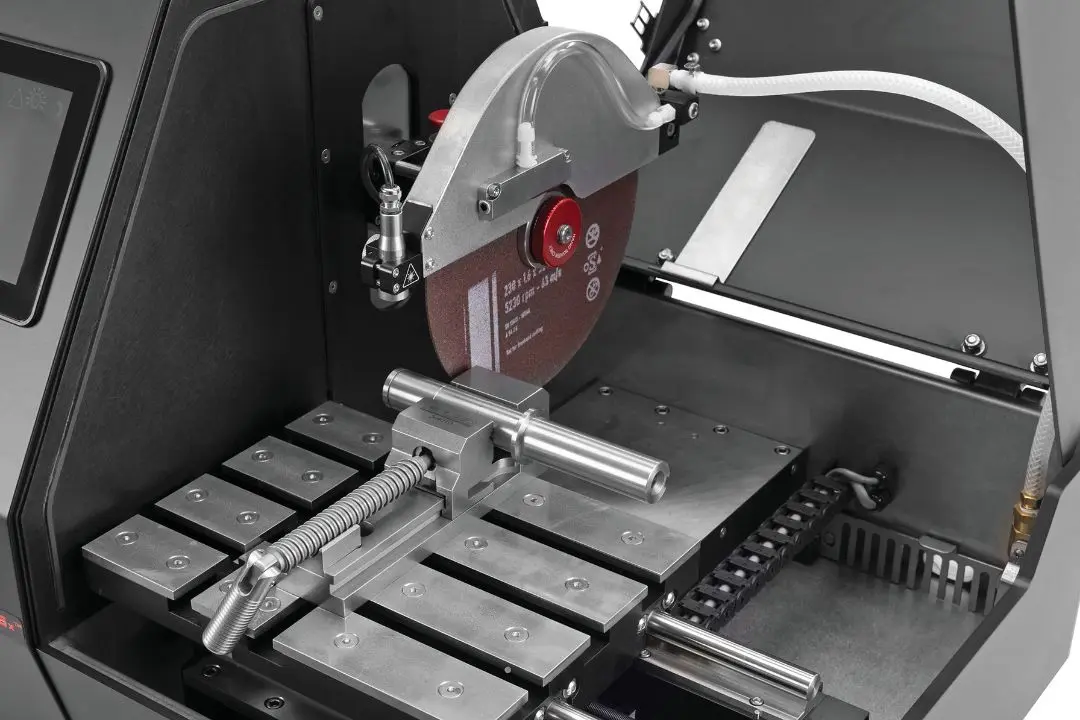

Quick-slide stainless steel vise on x-axis table

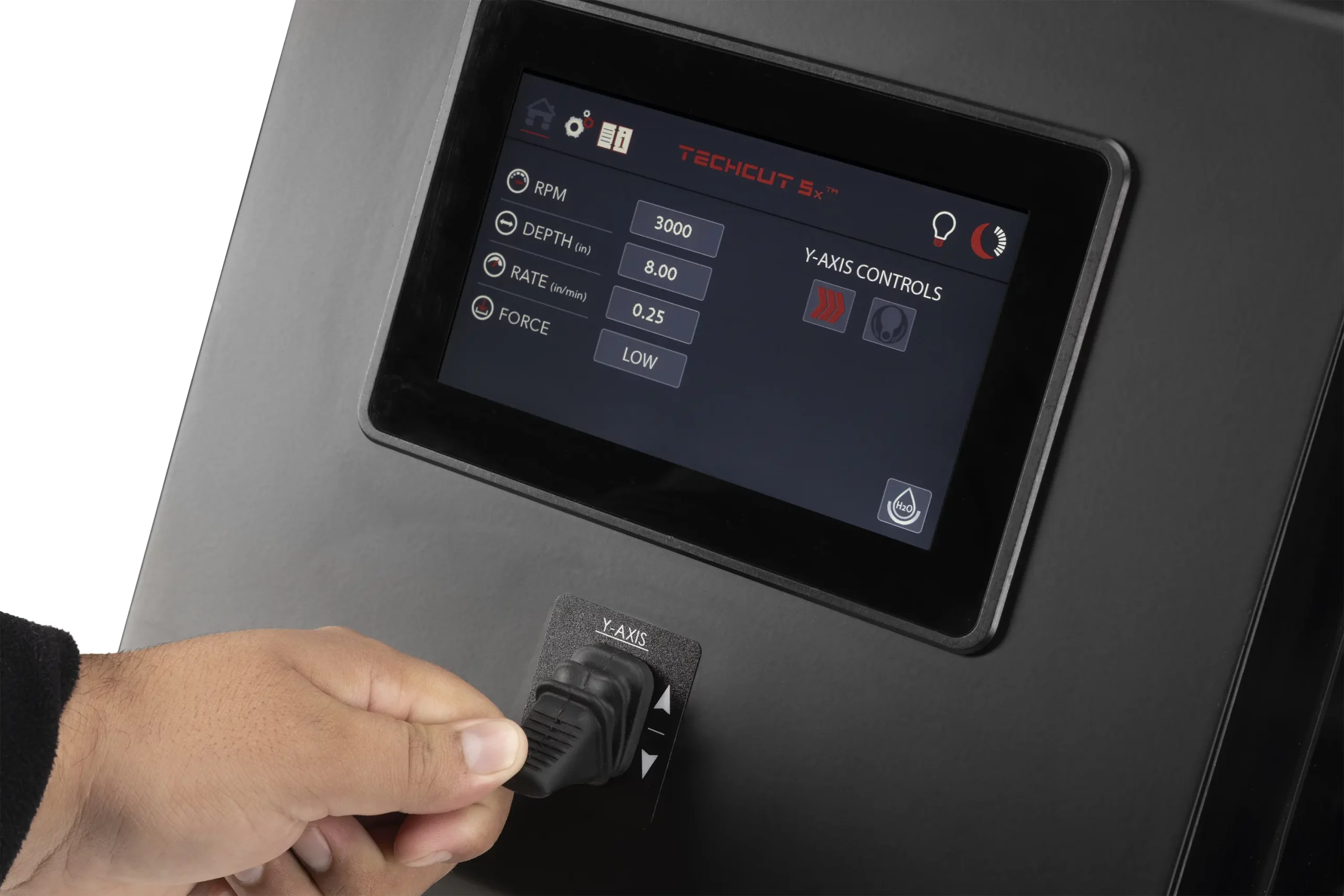

The joystick, with three programmable speed ranges & proportional control, allows the user to position the table quickly and accurately while observing the sample as it moves into position.

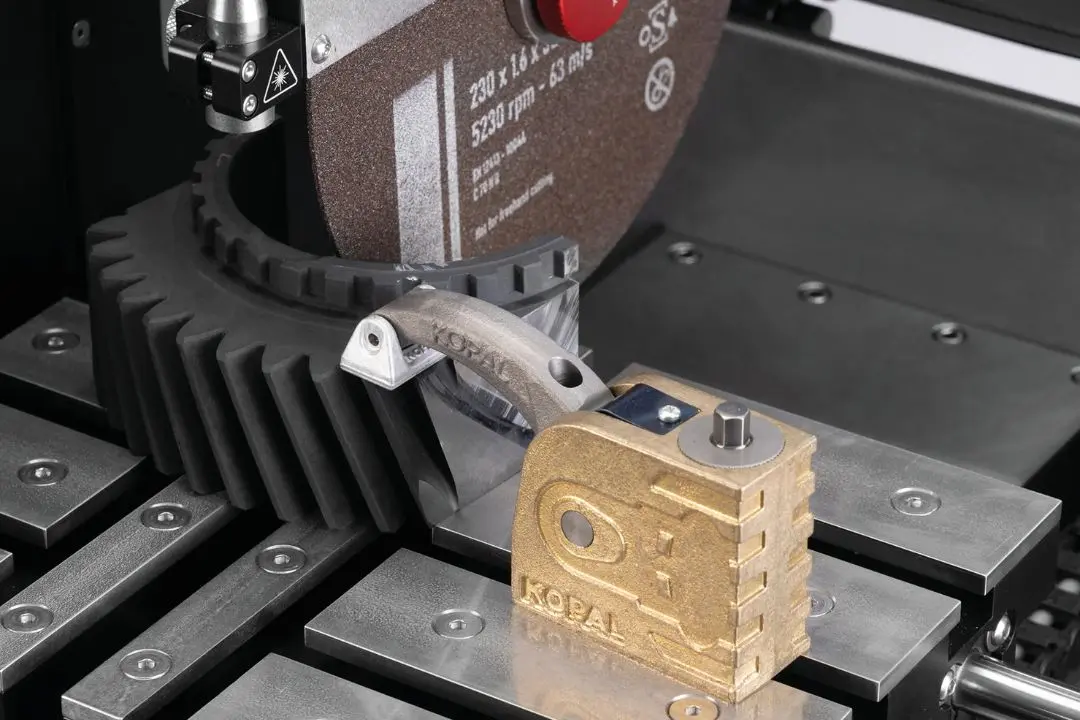

Vertical adjusting clamp on t-slot table
