AxioVert 5 MAT & Axiovert 7 MAT
Industrial Grade Microscopes
Inverted Microscopes
Low-Profile Design with Coded Components and Multiple Contrast Methods for Versatile Sample Examination (AI)

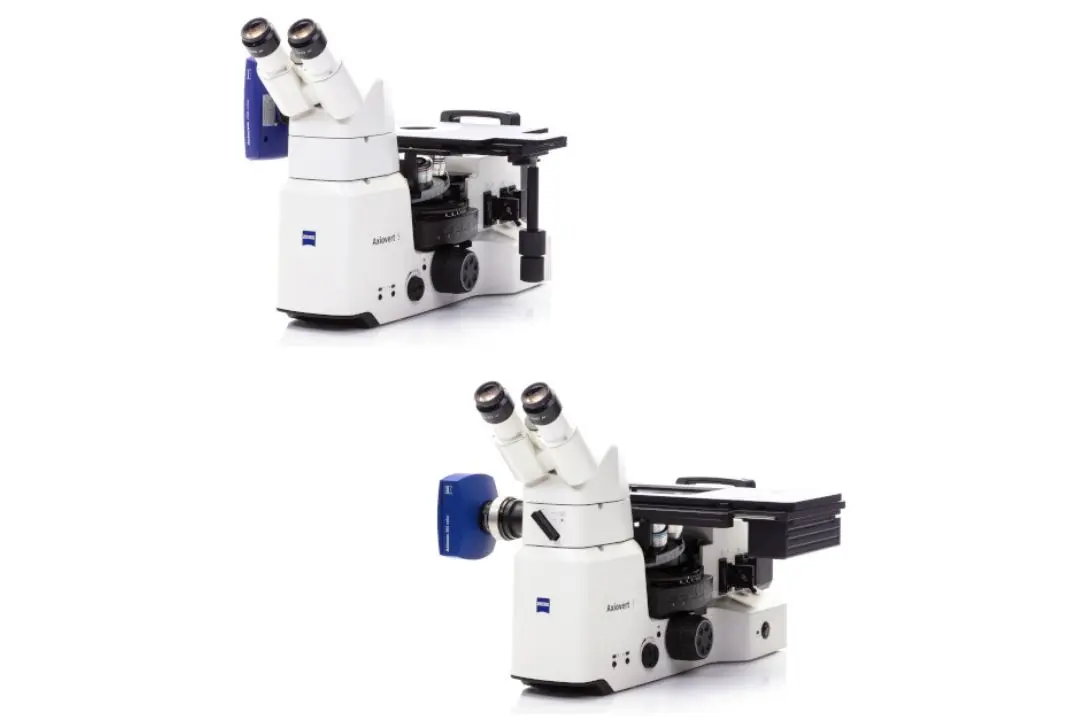

The Axiovert 5 and Axiovert 7 are both industrial grade microscopes.

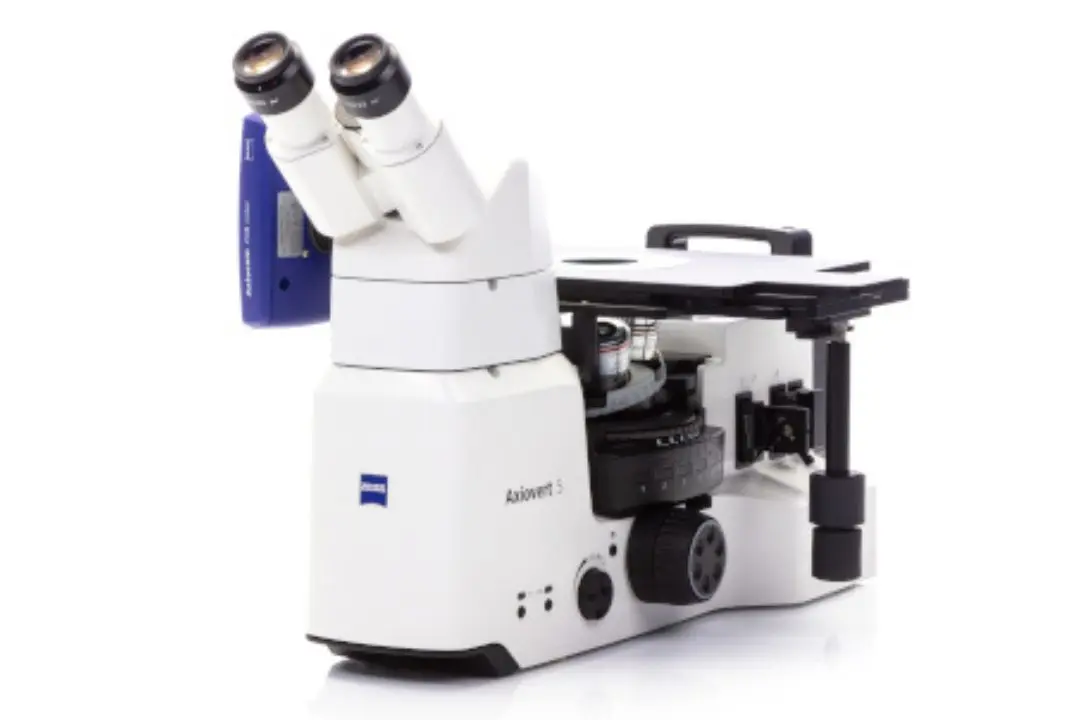

The Axiovert 5 is a manual microscope with coded components and can work as a stand-alone system (without a PC).

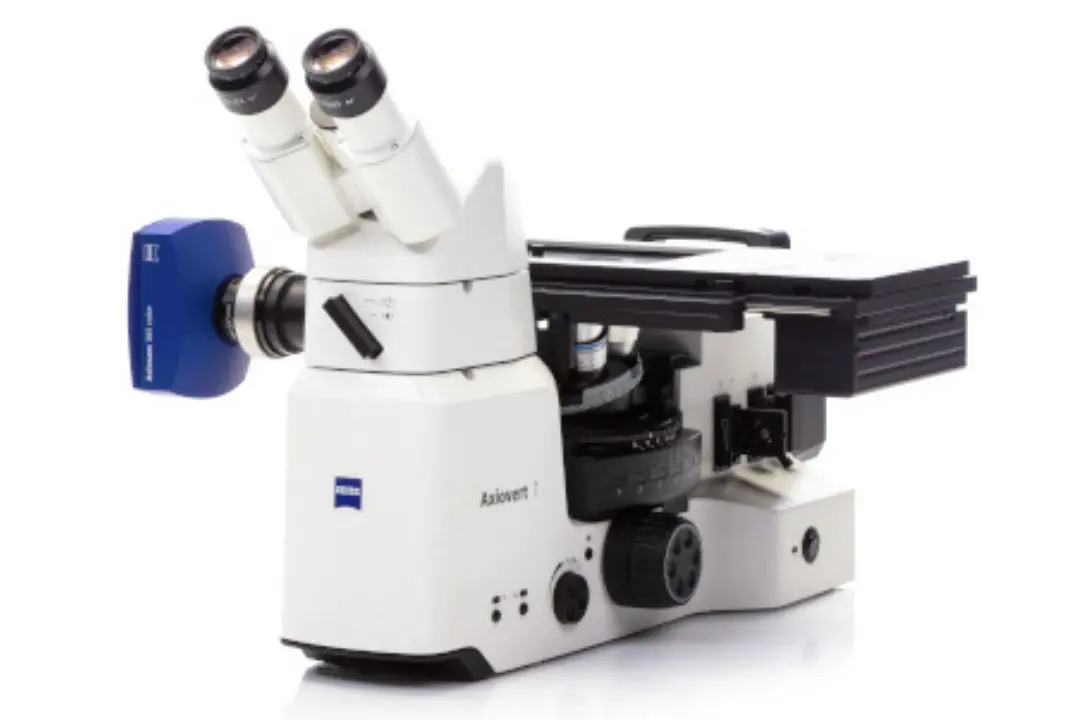

The Axiovert 7 is a motorized microscope with coded components and motorized focus drive.
Features
- 6-position objective turret, M27 thread
- 6-position reflector turret, manual, push & click
- Manual fine/coarse focus drive (Axiovert 5)
- 13 mm focus lift with adjustable focus stop
- Ergonomic intermediate piece, H=50 mm
- Light manager stores illumination settings of each objective and contrast technique, that can be recalled automatically as each objective/reflector module is positioned
- Parfocality manager (Axiovert 7)
- Built-in power supply with 50 watt bulb, 12V DC 60W, stabilized, 100V…240V AC/50…60Hz/80VA
- Reflected light illuminator with slots for luminous field diaphragm, polarizer and filter sliders
- 12 x 35 mm slot for analyzer slider
- Motorized focus drive – 78 nm resolution (Axiovert 7)
- Motorized focus drive – 78 nm resolution (Axiovert 7)
- Snap button for ZEISS Axiocam
- ECO Mode
- Smart Box Control for stand-alone operation without a PC (Axiovert 5)
- USB interface for communication with computer
