Axio Observer 3 MAT/5 MAT/7 MAT
Designed for the examination of mounted samples
Inverted Microscopes
Contrasting methods for reflected light include brightfield, darkfield, circular DIC, polarization and fluorescence.

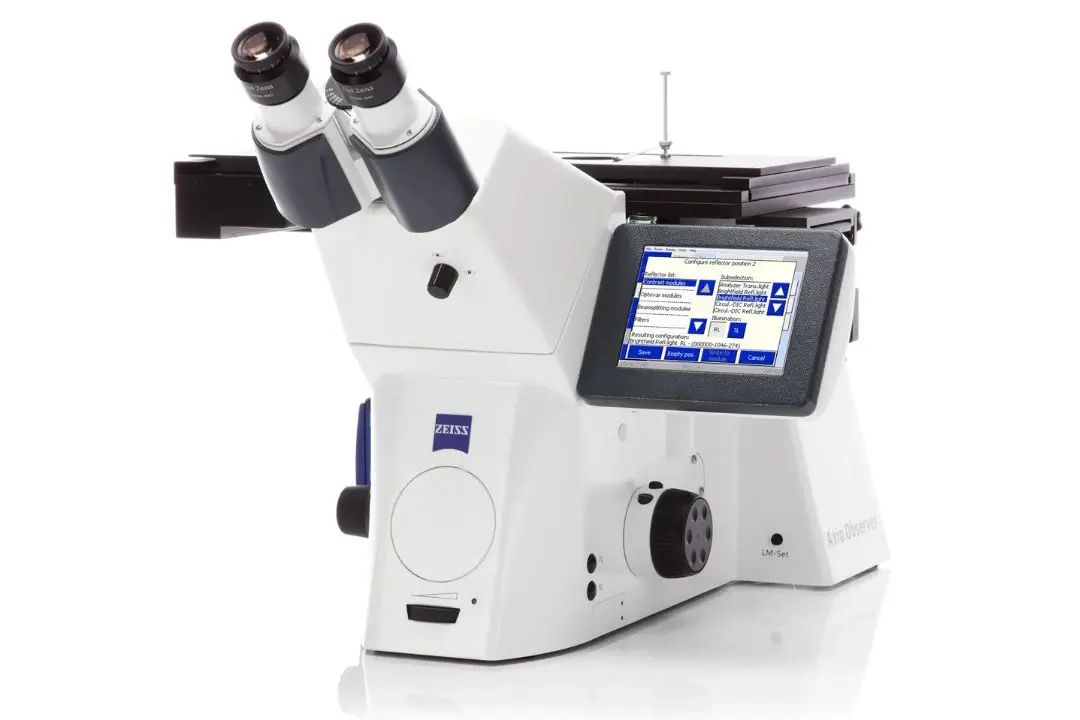

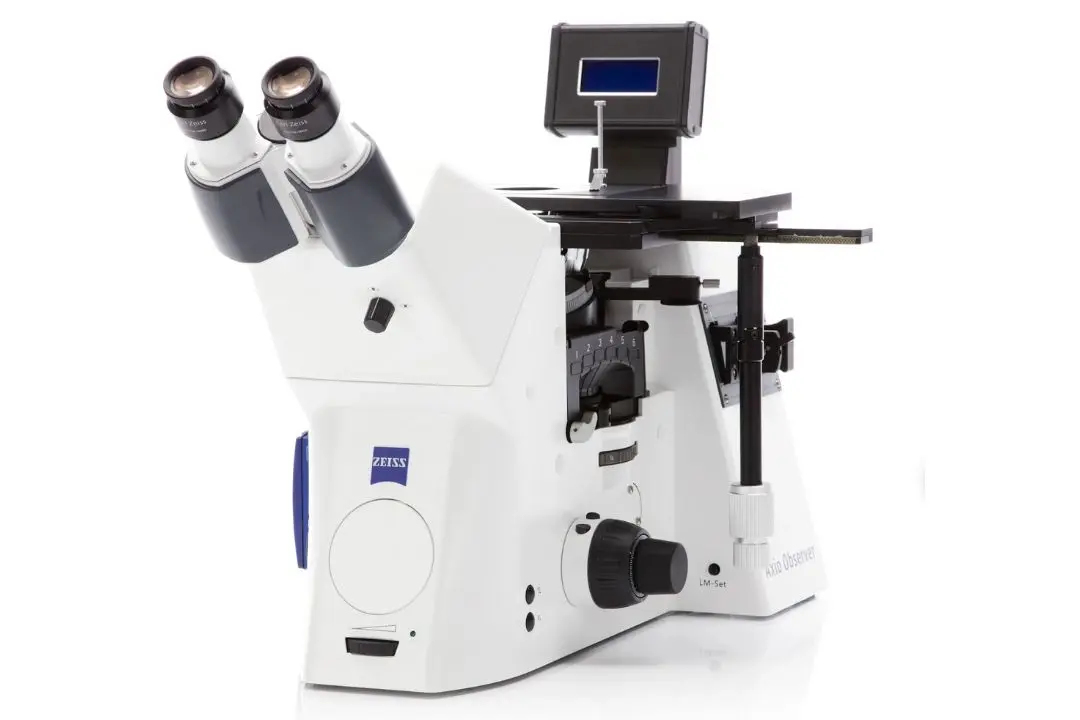

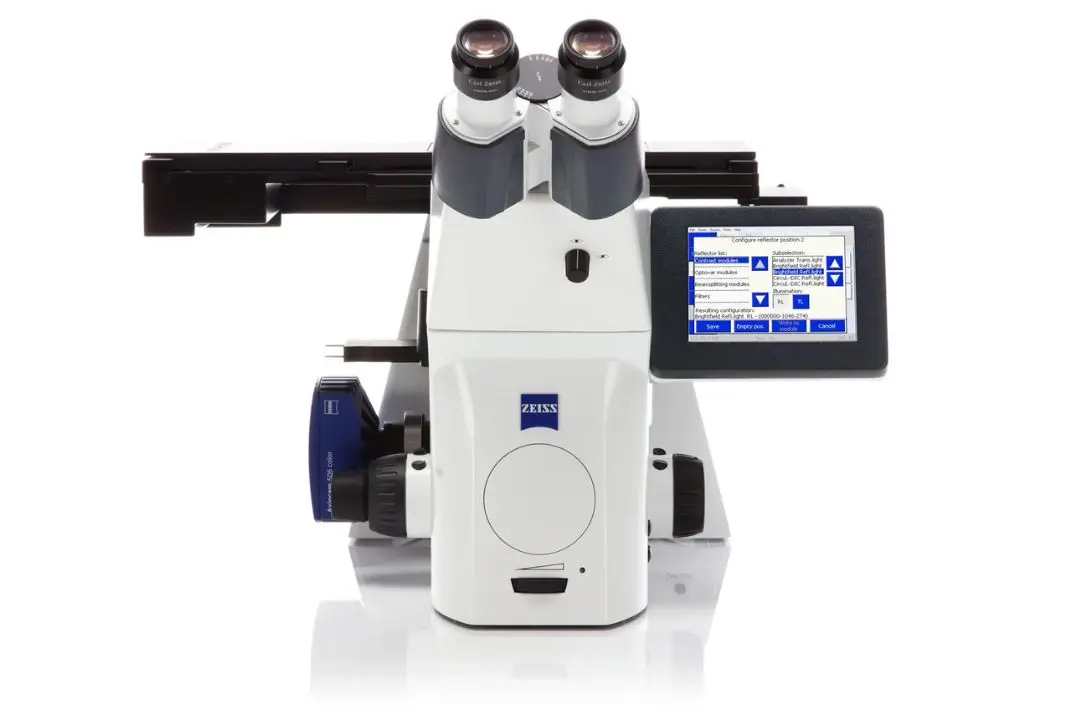

The Axio Observer is a research-grade inverted microscope from Zeiss designed for advanced materials analysis, metallography, and R&D applications. Built as a flexible, future-ready platform, it combines high-performance optics, automation, and modularity to meet demanding laboratory requirements.
Featuring an apochromatically corrected beam path, the system delivers exceptional resolution, contrast, and uniform illumination across all imaging methods, including brightfield, darkfield, polarization, DIC, and fluorescence. Automated components—such as contrast and light management systems—ensure consistent, reproducible results with minimal manual adjustment.
The intuitive operating concept includes touchscreen or LCD control, remote operation via docking station, and Automatic Component Recognition (ACR), which streamlines workflow and reduces setup errors. A wide range of objectives, cameras, stages, and AxioVision imaging software modules allows full customization for specific applications.
Available in three configurations (A1m, D1m, Z1m), the Axio Observer scales from entry-level to fully motorized systems, offering a robust, upgradeable solution for evolving materials research needs.
Features
- Apochromatic optics deliver high resolution, contrast, and uniform illumination
- Supports multiple imaging methods (brightfield, darkfield, DIC, polarization, fluorescence)
- Automated features including contrast manager, light manager, and component recognition (ACR)
- Intuitive operation with touchscreen/LCD control and optional remote docking station
- Modular, customizable system with compatible cameras, stages, and AxioVision software
- Available in three configurations (A1m, D1m, Z1m) for scalable performance and automation
