HR-300 & 400 Series
HR Series Rockwell Hardness Testers with Advanced Digital Display and Automation (AI)
Rockwell
Mid-Range HR-320MS, HR-430 Twin Models, and Measurlink® Software Integration for Precision Testing
The mid-range HR-320MS is selectable for both Rockwell and Rockwell/ Superficial scales. The HR-320MS features a high contrast LCD digital display, conversions for all common scales, and a motor driven loading sequence.
The HR-430 Series is available in Rockwell-only or Rockwell/Superficial Twin Tester models. HR-430 models feature an automatic brake-and-start feature to prevent overloads during the minor load cycle and to initiate testing when the proper load is achieved. HR-430 testers also include the convenient dial-a-weight major load selection system.
All HR Series hardness testers can perform Brinell hardness tests when equipped with available optional accessories: a Brinell indenter, weight set and measurement microscope.
HR Series Rockwell hardness testing machines support Measurlink®, Mitutoyo proprietary statistical processing and process control software. Measurlink® performs measurement data analysis and provides real-time display of measurement results for SPC Software and other management routines. The program also provides archiving and can be linked to a higher-level network environment for enterprise-wide functionality.
Features
Features a motor drive that controls the loading sequence to ensure consistent test force application.
Includes a manual handle for straightforward test force and preliminary test force selection.
Equipped with an automatic brake and start system that initiates the major test force cycle once the minor force is reached (HR-430).
Provides a digital display for direct reading of hardness values, reducing human error in result interpretation (HR-430).
Uses a dial-type selection system for quick and easy switching between total test forces (HR-430).
Incorporates an adjustable dwell time feature to meet specific material testing requirements and standards.
Related Equipment
TechCut 5x™
This equipment features a large, LED illuminated cutting compartment with an automatic, adjustable rate linear feed (y-axis) table. Two (2) table options provide versatility for a wide variety of applications and needs.
MetPrep 4x™
The MetPrep 4x™ supports 10″ or 12″ platens and pairs with the PH-4™ for four individual force positions (ideal for medium capacity) or the PH-6™ for six positions and higher throughput.
Related Products

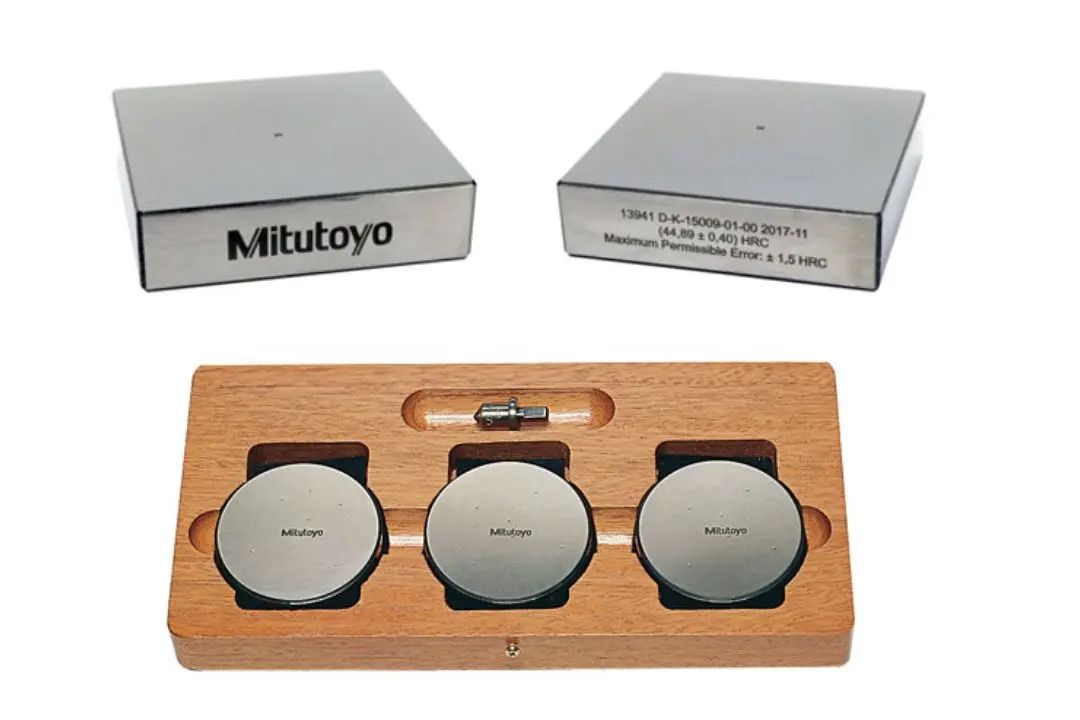

Test Blocks
Mitutoyo Test blocks for use with Micro Vickers/Knoop Hardness Testers and Rockwell/Superficial Rockwell Hardness Testers. Test blocks are used to verify calibration accuracy.

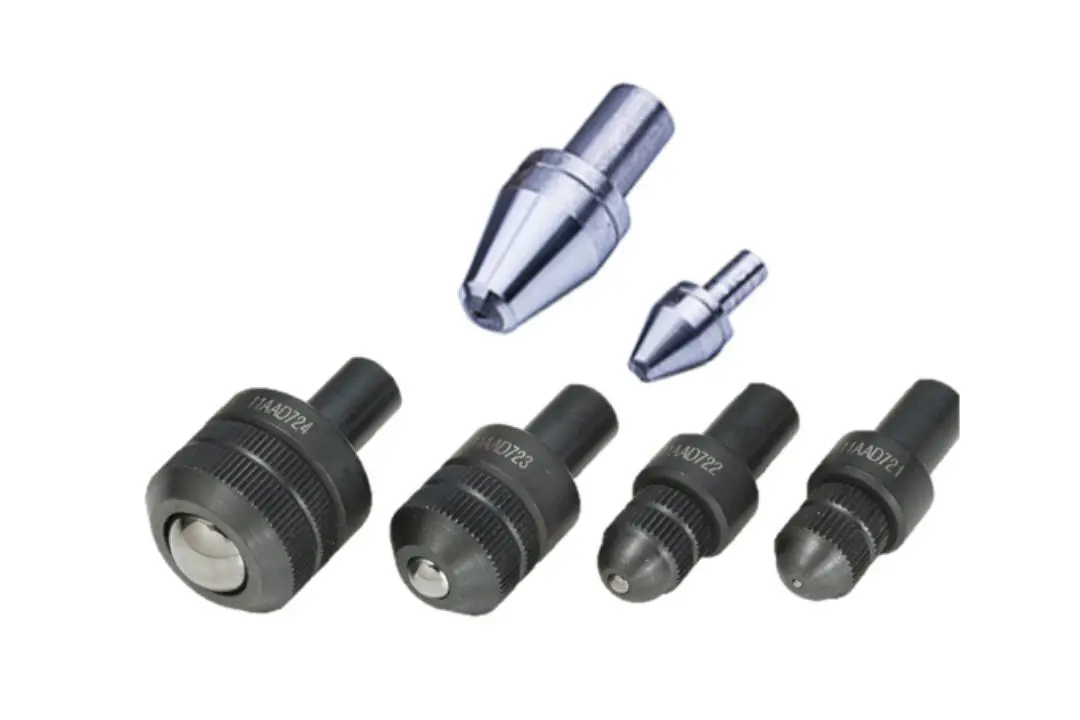

Indenters
A complete line of indenters are available for all Mitutoyo™ hardness testers including Vickers, Knoop, Vickers/Knoop, Rockwell and Brinell scales.
