TrimSaw 2x™
Overview
Manual Table Saw
The TrimSaw 2x™ is a manual-feed, variable-speed table saw that is ideal for cutting printed circuit boards, composite/ceramic substrates, electronic devices and other nonmetals. Cutting fluid is drawn from the reservoir by the rotating blade, applied to the sample during sectioning, then channeled back to the reservoir through holes in the cutting platform.
When using a 6″ (152 mm) diameter blade, the rim extends 1.6″ (41 mm) above the cutting platform, allowing up to 1.5″ (38 mm) thick samples to be sectioned. The adjustable rip fence is made of stainless steel and allows measured, guided sectioning through the blade. Optional miter-guide and multipurpose fixtures slide in the table slot for more precise cutting requirements or when handheld sectioning cannot be tolerated.
Features
- Reliable saw for rapid sectioning of nonmetals
- 6″ (152 mm) blade diameter capacity
- Color LCD touchscreen to control all functions
- Variable speed: 500−3,000 RPM, with 4 adjustable presets
- Adjustable table rip fence for guided sectioning
- Slotted table to accept fixtures for linear cutting
- Large cutting platform: 6.75″ W x 12.5″ D (171 x 318 mm)
Video
Related Products
Diamond Bonded Wafering Blade
Diamond Metal Bond: High Concentration (HC) – Recommended for general laboratory sectioning, excluding ferrous alloys. Most commonly used at higher (>1,000 RPM) speeds.
Learn More >
Lubri-Cut, High Speed Cutting Fluid
Cutting fluids enhance blade performance, extend blade life and minimize material deformation by reducing heat during sectioning. Lubri-Cut is used for high speed (>1000 RPM), has a low oil content and is easier to clean.
Learn More >
Details

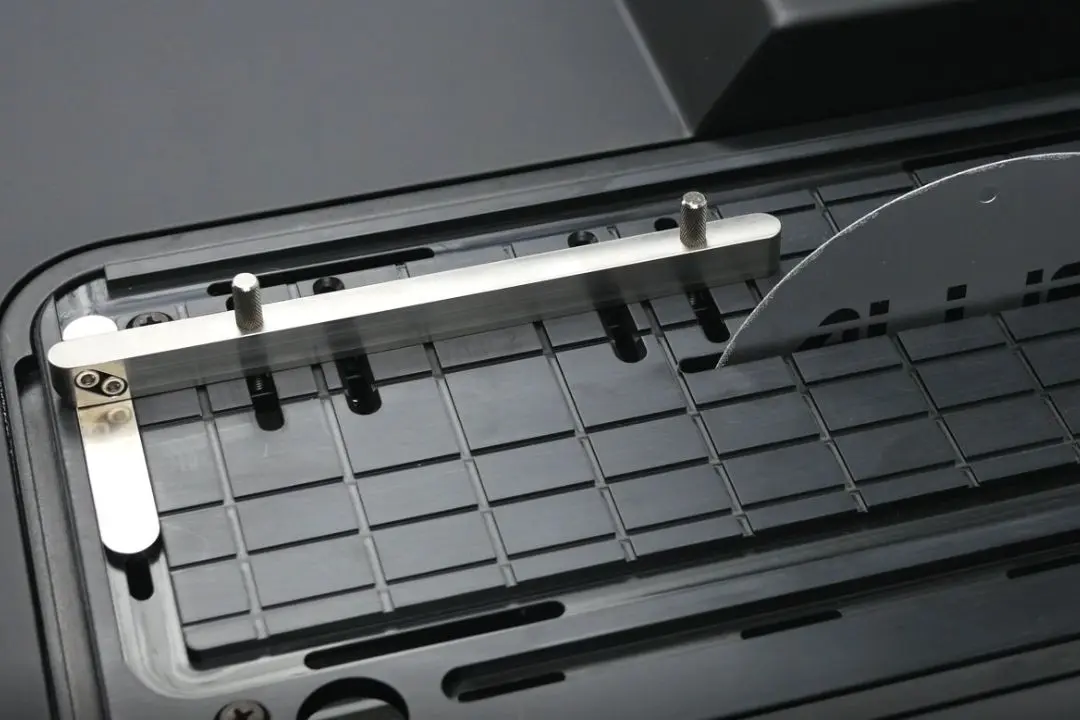

Adjustable table rip fence for measured/guided sectioning

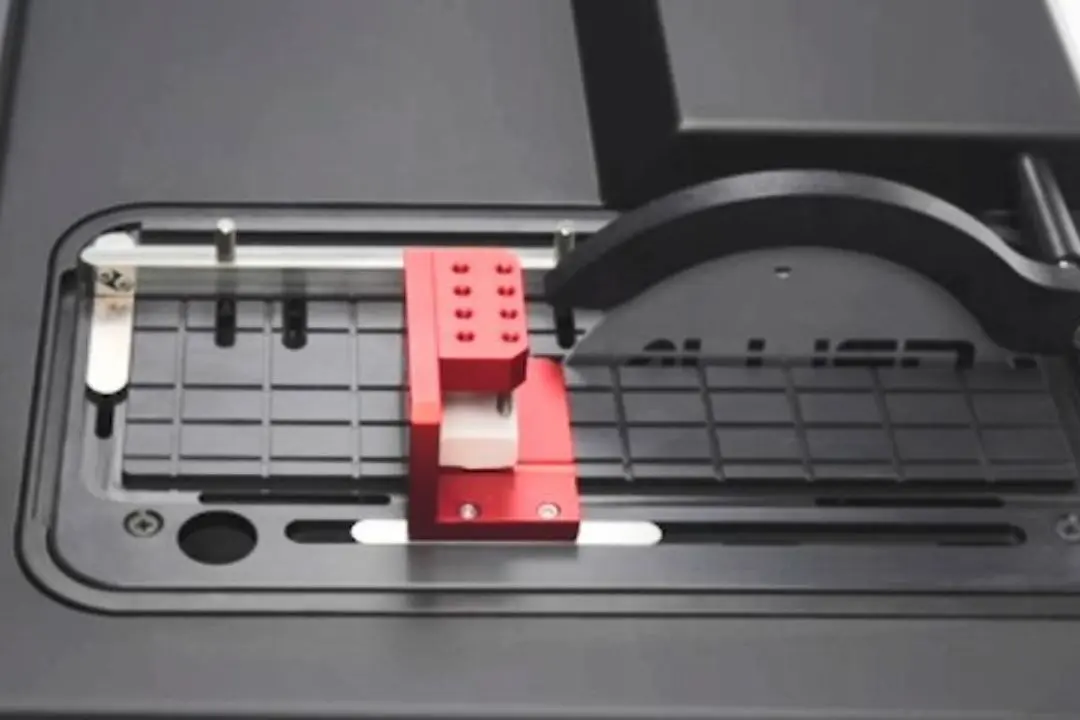

Table slot guide fixtures for linear cutting

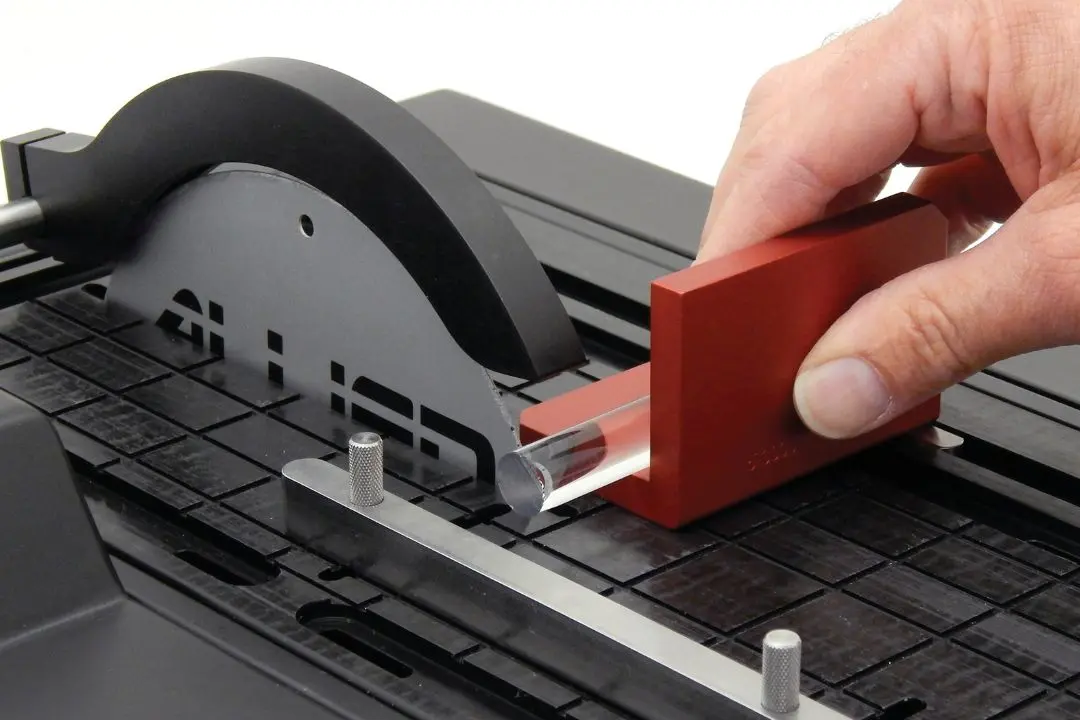

Adjustable blade guard for thicker samples
