TechCut 4x™

Precision Low Speed Saw

Semiautomatic

A low speed saw for cutting smaller, delicate samples

The TechCut 4x™ is a precision low speed saw designed to cut small or delicate samples that cannot tolerate increased heat from friction caused by high speed sectioning.

A 3.5″ color LCD touchscreen is used to control all functions with an intuitive interface optimized for efficiency. The pivoting cutting arm has adjustable weights to apply or counterbalance downward force to the sample during sectioning. Cutting fluid is drawn from the reservoir by the blade to cool the sample. With a 3″ to 6″ blade range, samples up to 2″ thick can be sectioned.

Features

Gravity-fed saw for smaller, delicate samples
Accepts 3−6″ (76−150 mm) diameter blades
Cutting capacity: 2″ (51 mm) thickness
Color LCD touchscreen to control all functions
Variable speed: 10−500 RPM, with 5 adjustable presets

Micrometer sample indexing with 2 μm resolution
Spring-retractable dressing stick attachment
Optical shut-off sensor with adjustable stop

Related Products

TechCut 4x™ Accessories

The fixture design of the TechCut 4x offers variety and interchangeability that make it very easy to use. All fixtures are made of either stainless or anodized aluminum for corrosion resistance.

See Accessories >

MultiPrep

The MultiPrep™ System enables precise semiautomatic sample preparation of a wide range of materials for microscopic (optical, SEM, FIB, TEM, AFM, etc.) evaluation.

Cutting fluids

Cutting fluids enhance blade performance, extend blade life and minimize material deformation by reducing heat during sectioning.

See Cutting Fluids >

Precision Wafering Blades

Wafering blades are available in Bonded, Plated or Solid Core configurations with diamond, cubic boron nitride (CBN), aluminum oxide (Al2O3) or silicon carbide (SiC) mineral.

Details

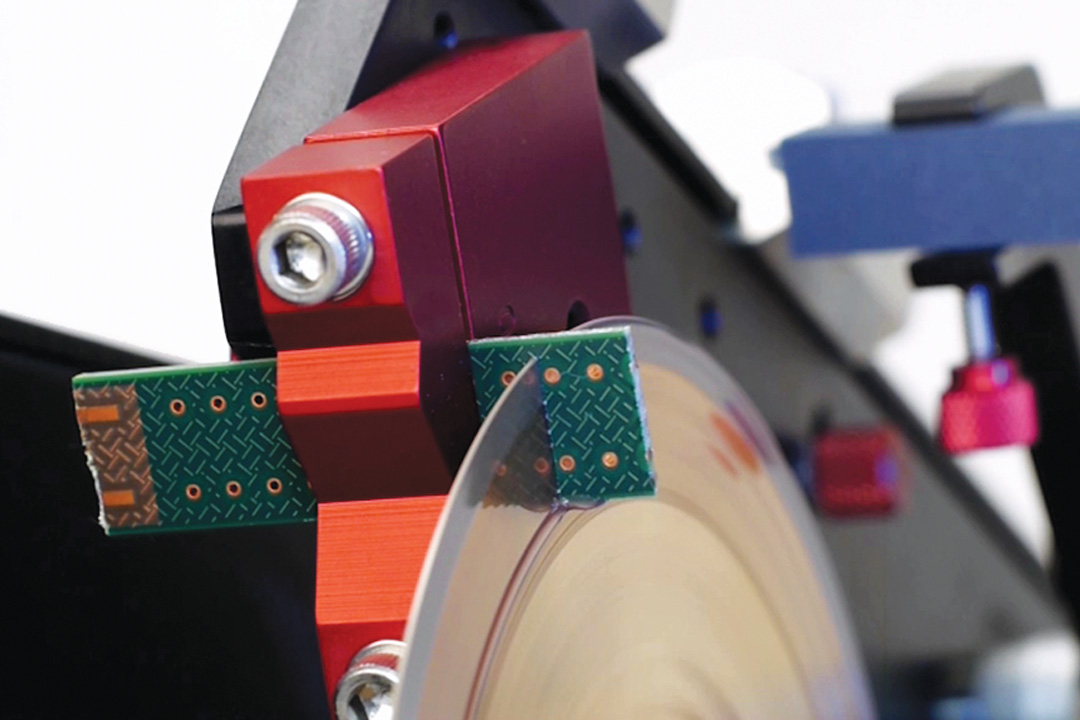

Fixtures are adjustable to optimize the cutting angle.

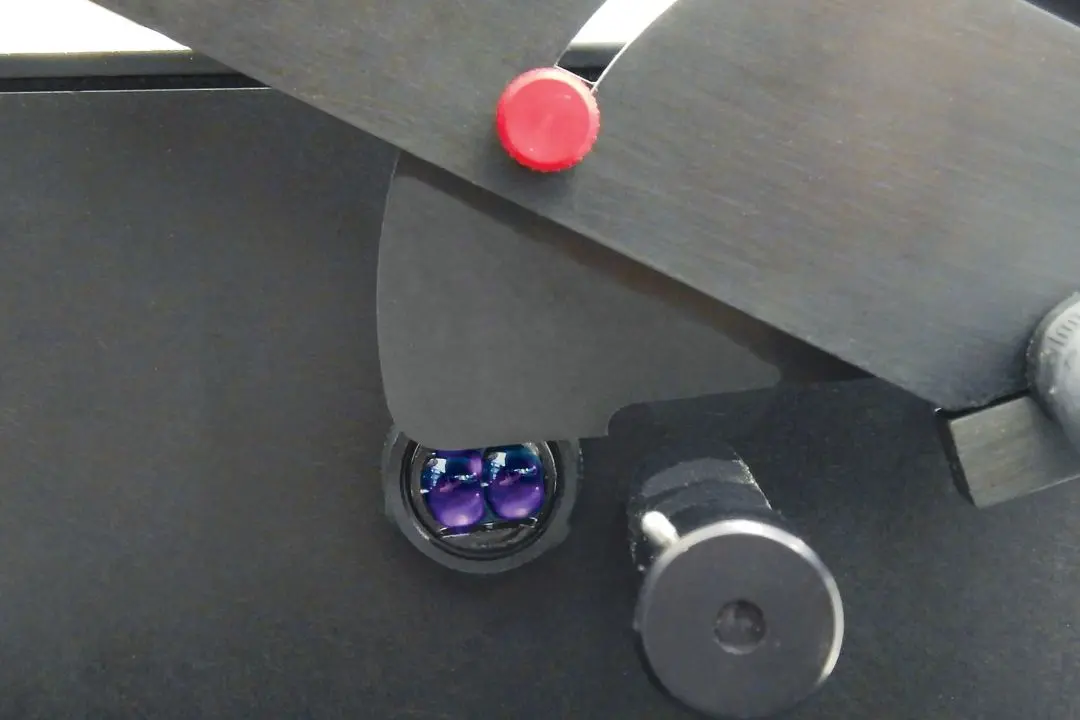

Optical shut-off sensor with adjustable stop.

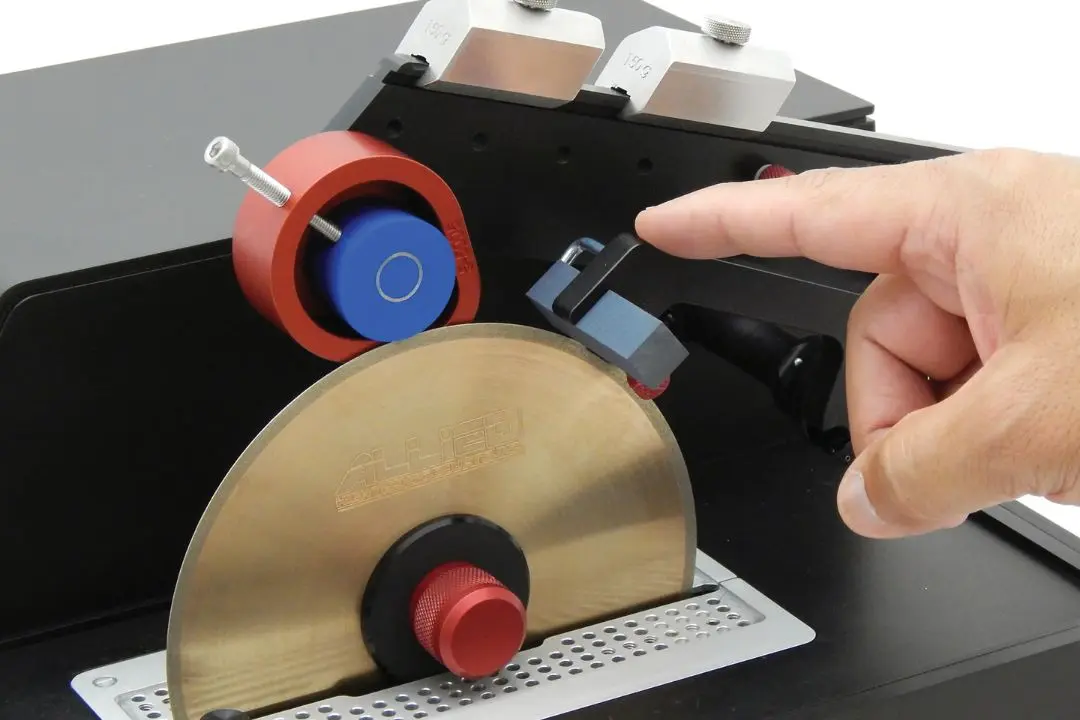

Spring-retractable dressing stick attachment allows dressing while sectioning.
