PowerCut 10x™
Cut-Off Saw
Manual
A powerful, reliable cut-off saw designed to cut a wide variety and size of materials
The PowerCut 10x™ is a powerful, reliable cut-off saw designed for low to high volume applications. It accommodates blades up to 10″ (250 mm) in diameter, allowing a wide variety of sample shapes and sizes up to 3.75″ (95 mm) thick to be sectioned.
- Versatile: Dual T-slot tables allow front-to-back and side-to-side vise/clamp positioning. A side port allows cutting of longer samples such as bar stock.
- Durable: Engineered and constructed using precision machined, hard-anodized aluminum and stainless steel components to provide maximum longevity. Front controls and rear electronics are isolated from the wet cutting chamber.
- Easy to Use: Straightforward controls and user-friendly functions allow quick, easy, repeatable operation.
- Safe: The polycarbonate viewing window is engineered to withstand blade breakage should it occur. A cover shut-off switch and emergency stop provide added operator protection.
Features
- Manually operated saw for a wide variety of materials
- 10″ (254 mm) diameter blade capacity
- Cutting capacity: up to 3.75″ (95 mm) bar stock
- Powerful 3.5 HP (2600 W) stainless steel waterproof motor
- 5″ (127 mm) distance between blade and motor, allowing longer/larger parts to be sectioned
- Side port for cutting long samples
- Optional blade position laser indicator and electro-mechanical safety lock
Related Products
PowerCut 10x™ Accessories
The PowerCut 10x™ accessories are designed to improve cutting performance, safety, and operator convenience. Features include a Quick-Slide vise and adjustable clamping options for secure sample positioning.

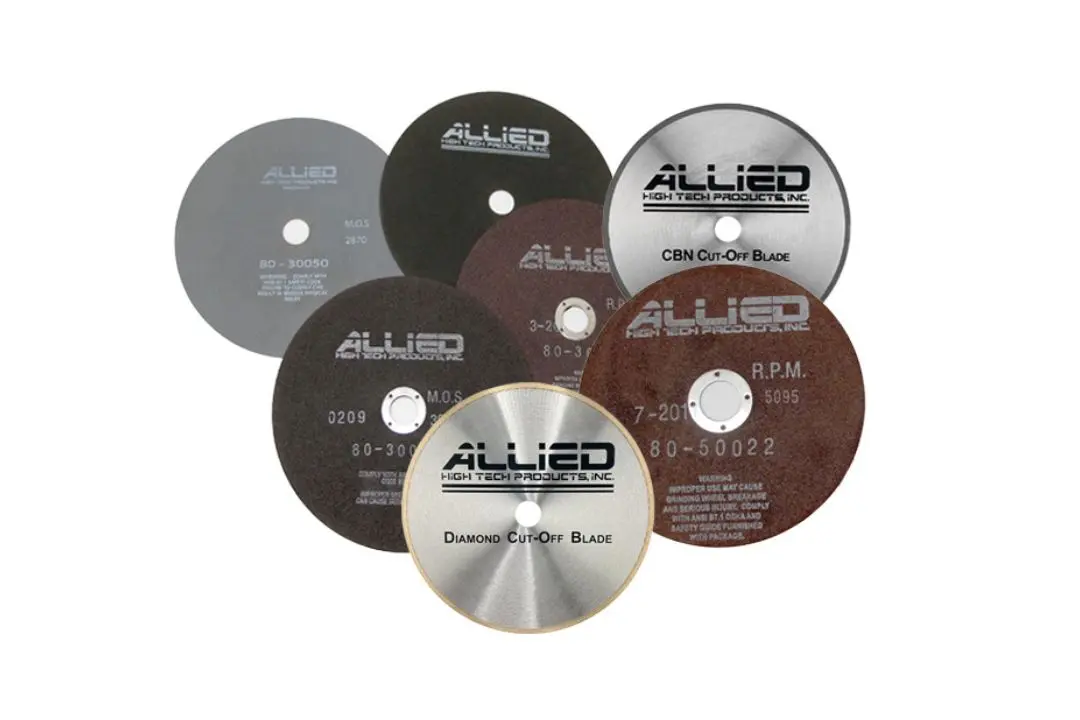

Cut-Off Blades
These blades are engineered for laboratory sectioning and come in aluminum oxide (Al2O3), silicon carbide (SiC), diamond, and cubic boron nitride (CBN) abrasives with various bond types for a wide range of materials.

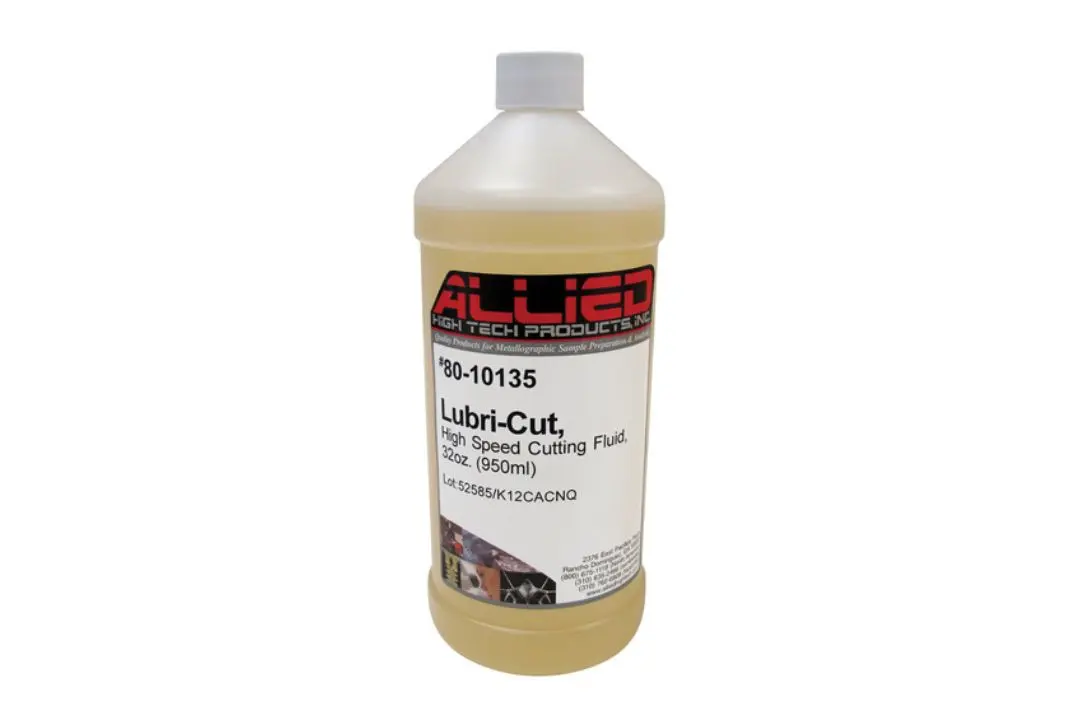

Cutting Fluids
Cutting fluids enhance blade performance, extend blade life and minimize material deformation by reducing heat during sectioning.
Details

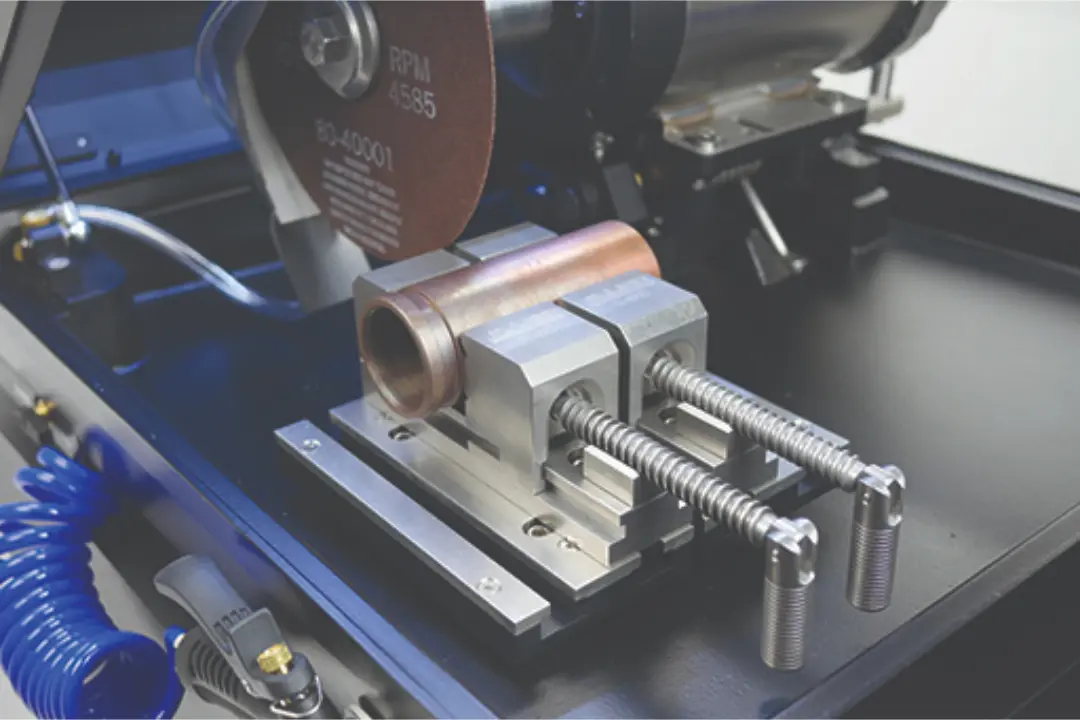

Quick Slide Vice – can be positioned anywhere along the T-slots, and allow samples up to 3″ (76 mm) deep to be secured.

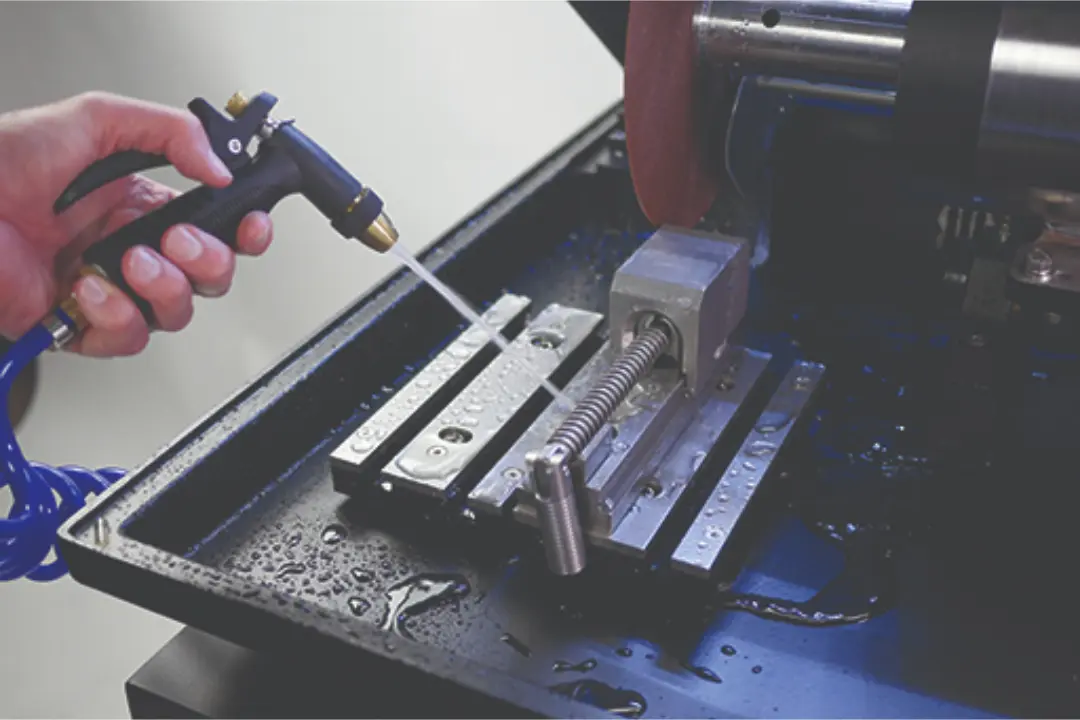

Chamber Cleaning – simply adjust the valve to redirect coolant from the blade to the cleaning hose.

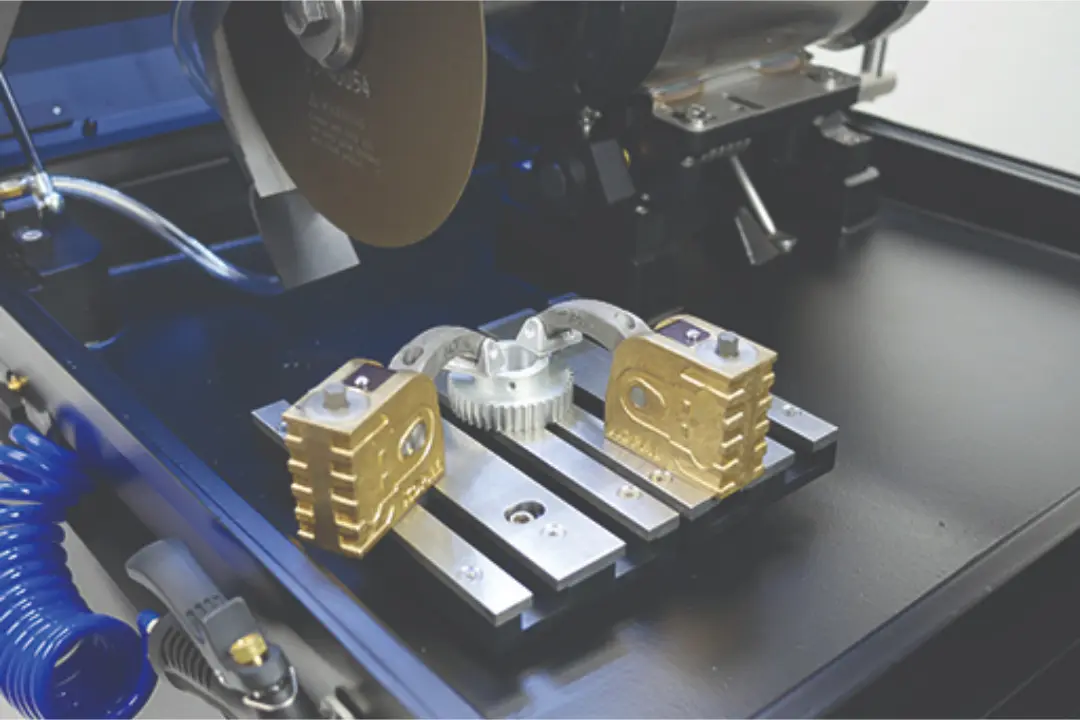

Vertical Adjusting Clamp – can be positioned in any orientation throughout the T-slots in the tables.
