VacuPrep™
Overview
Epoxy Impregnation System
The VacuPrep™ removes trapped air from uncured epoxy, filling open pores and cavities in samples to provide maximum bonding and support. This maintains sample integrity during abrasive preparation, reducing the chance of cracking or delamination.

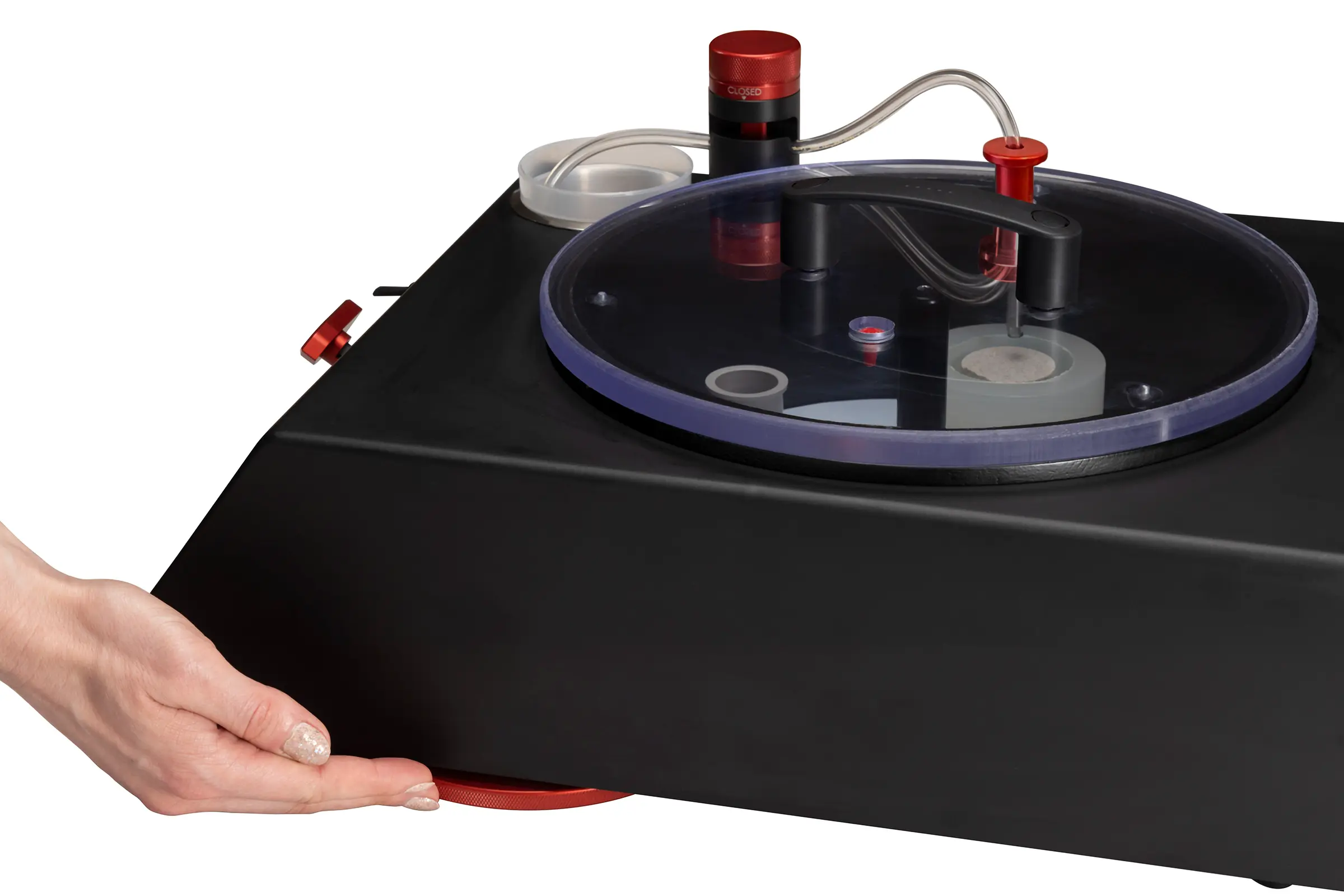

The VacuPrep™ comes in two (2) versions – the standard model and a turntable model. This new variant adds a turntable with an anti-stick PTFE lined interior that operates with a rotation wheel located on the exterior right side of the unit. The turntable features markings where cups can be positioned beneath the fill tube in the cover. The operator then rotates the wheel on the right side of the unit to position each cup for drawing epoxy from the mixing cup while under vacuum.
Features
- For epoxy impregnation of porous samples
- Quiet, pump-free operation
- Clear lid to allow sample viewing during process
- Through-port for epoxy fill under vacuum
- Turntable model available for multiple mount fills under vacuum
- Pulls up to 28 inHg vacuum
- Large 10″ diameter x 4.5″ deep (254 x 114 mm) chamber
- Holds up to thirty (30) 1.25″ (32 mm) cups
Video
Related Products

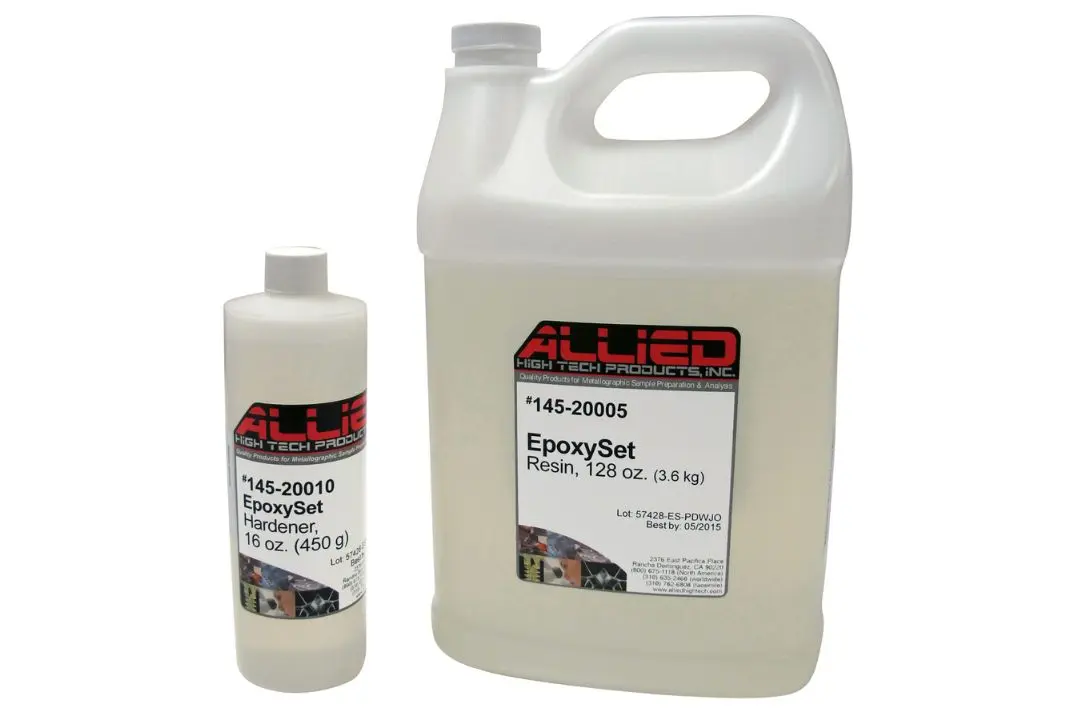

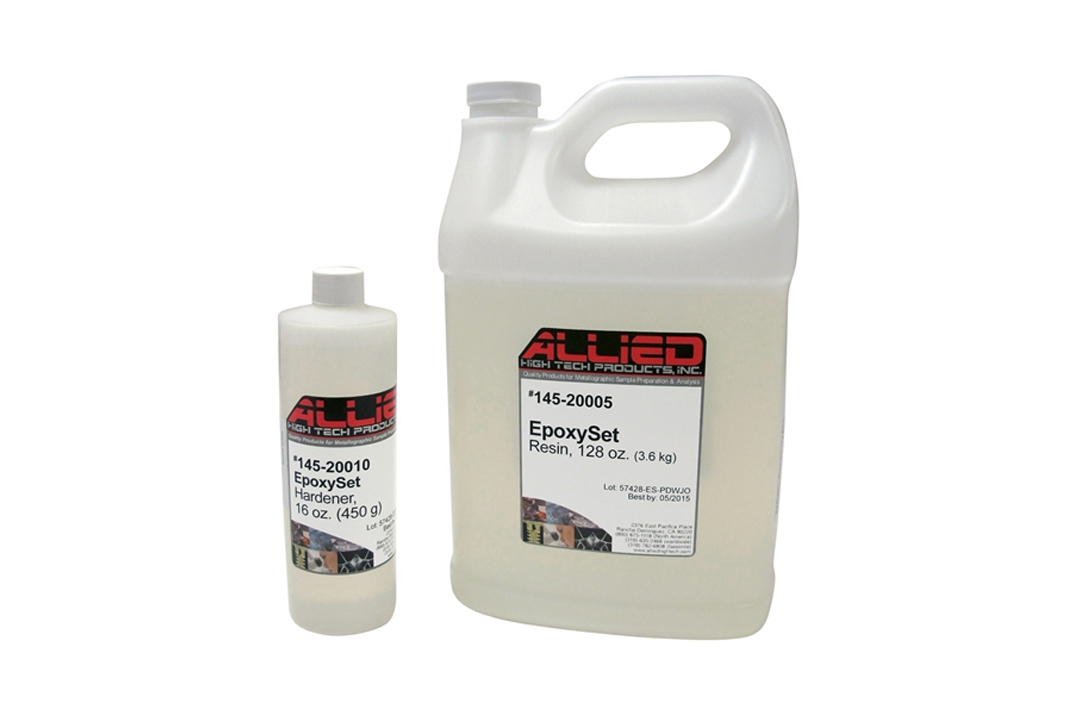

EpoxySet
With very low viscosity, EpoxySet offers excellent flow and penetration. It is extremely hard, crystal clear and exhibits firm adhesion with virtually no shrinkage. Its low curing temperature is ideal for heat sensitive samples.
Learn More >

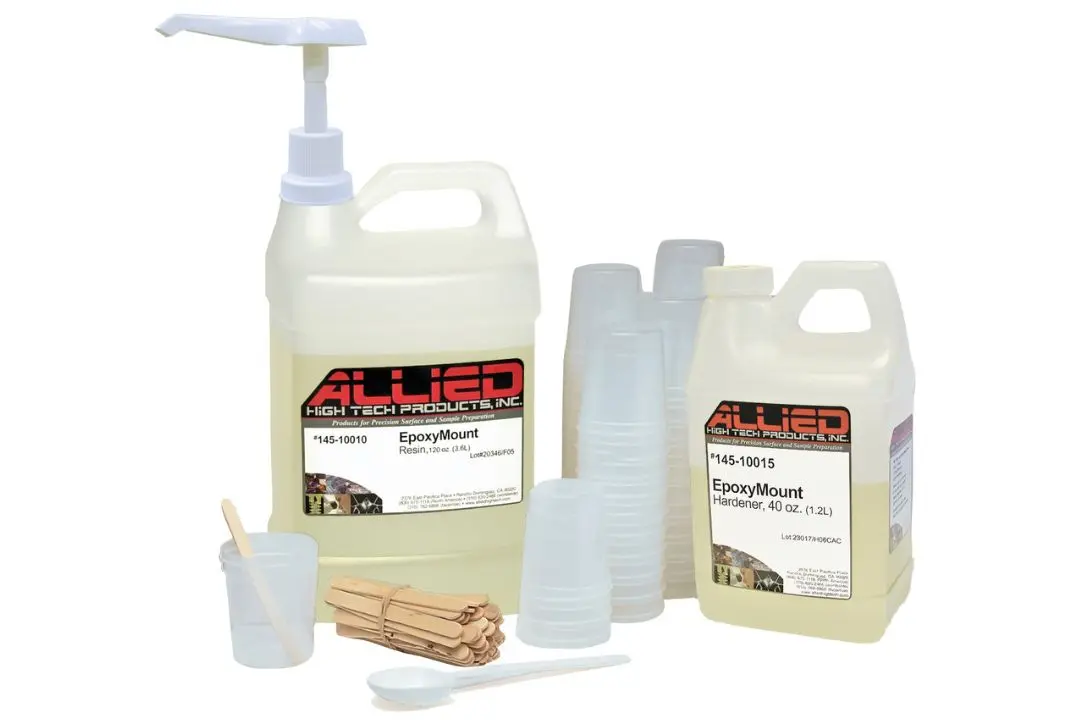

EpoxyMount
This fast-curing epoxy hardens in 2 hours at room temperature while still maintaining quality characteristics such as good adhesion, hardness and minimal shrinkage.
Learn More>
Details

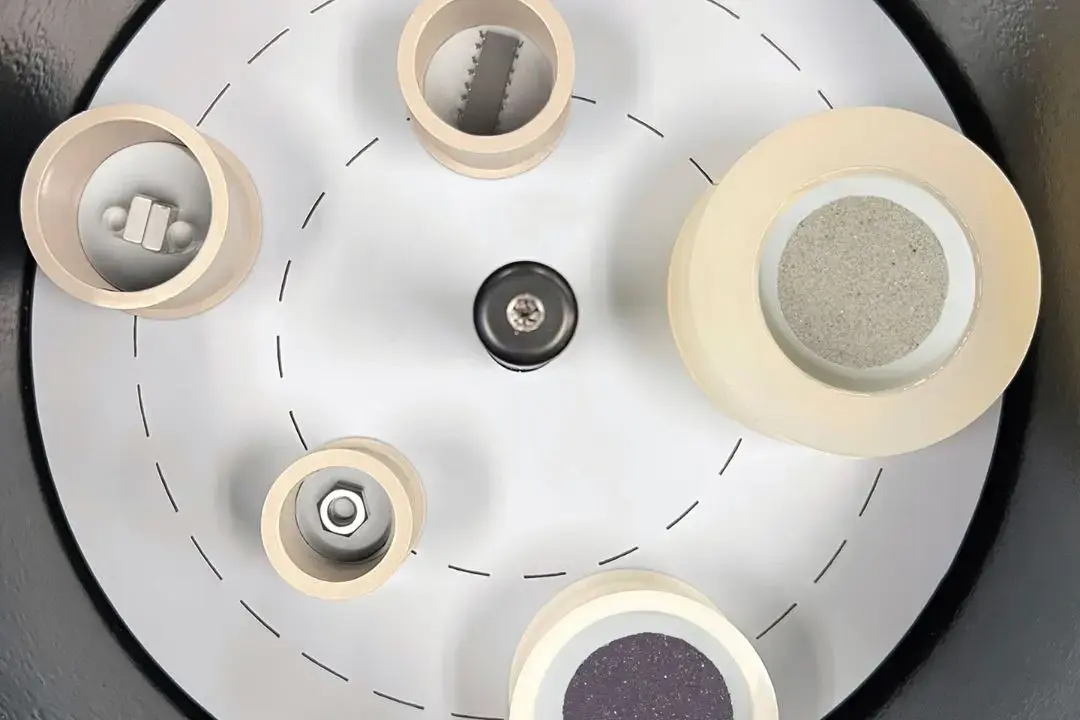

Turntable version allows for easy, accurate fill of multiple mounting cups under vacuum.
Large 10″ (254 mm) diameter chamber; accommodates a variety of mount shapes & sizes

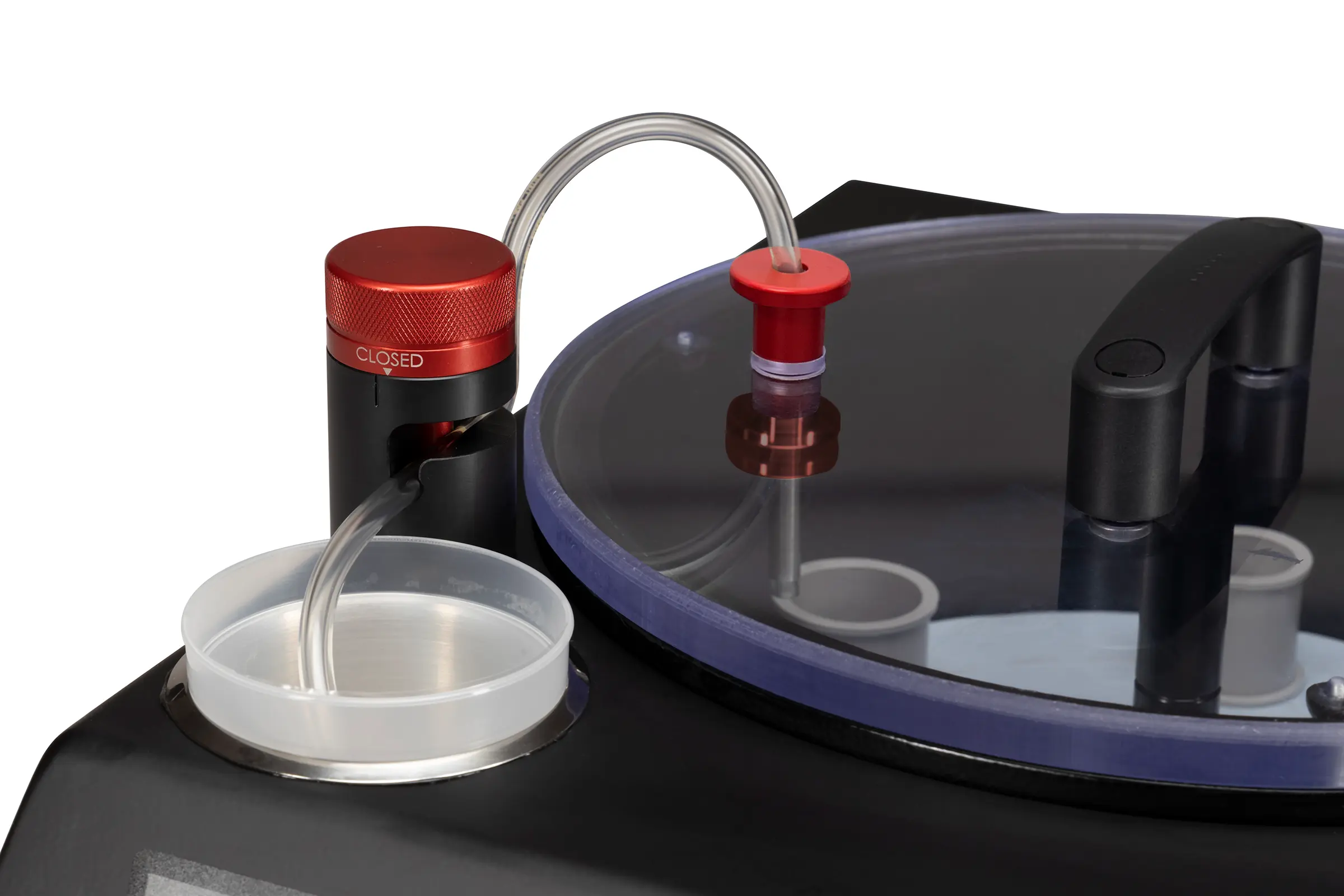

Through-port for optional epoxy fill under vacuum.
