PC-200™

Pressure Chamber

Cold Mounting

Reliable, large volume system for cold mounting

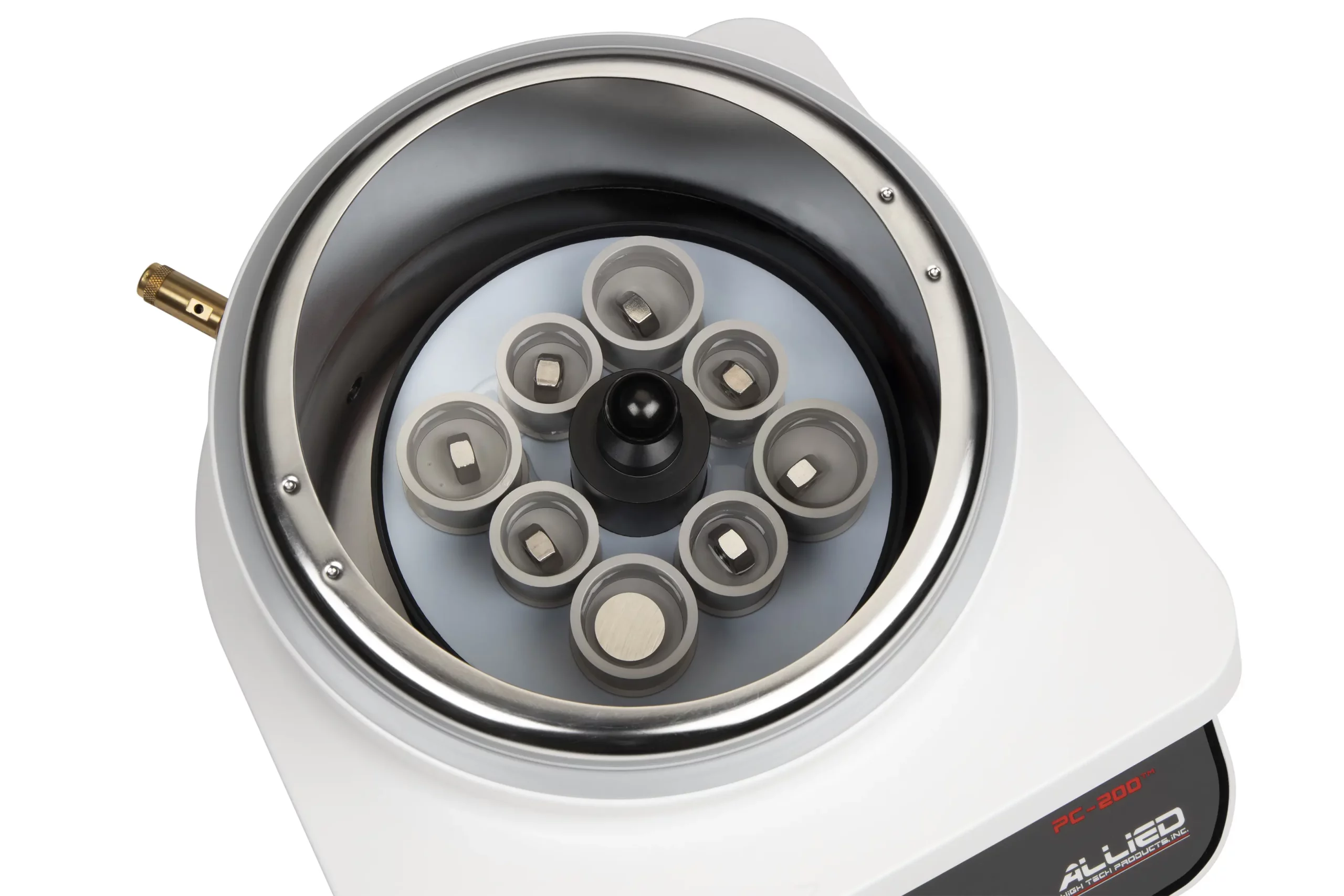

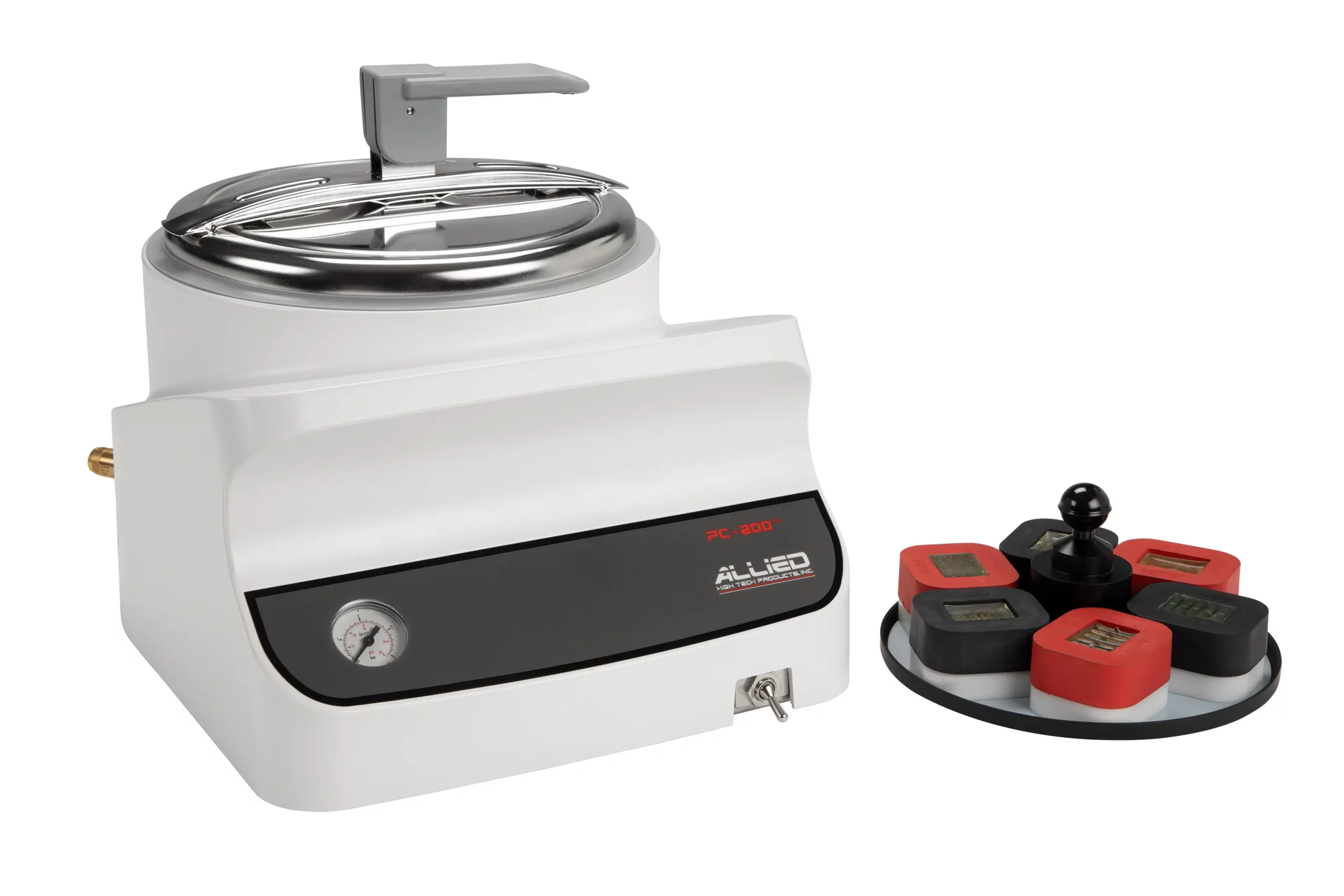

The PC-200™ is a large volume pressure chamber for cold mounting with acrylic and epoxy. With an 8″ opening and 7.5″ depth, this pressure chamber accommodates oversized silicone mounting cups, a large quantity of round cups, or multiple PCB molds.

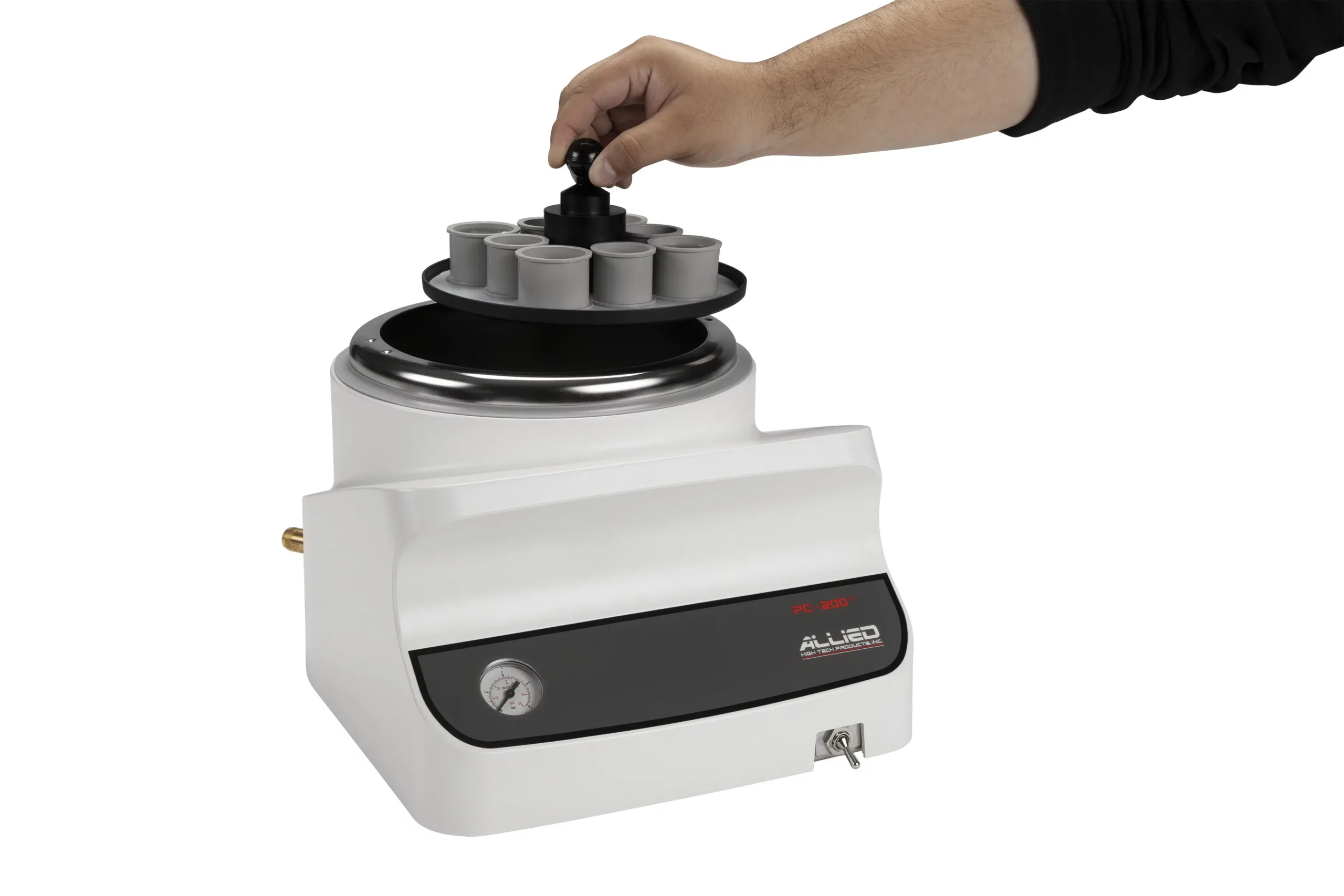

The process of loading the PC-200™ pressure chamber with freshly poured molds is made easier with the stacking tray. The diameter of the tray easily fits into the chamber opening. The bottom of the tray is Teflon® for easy cleanup of spilled mold resin (acrylic or epoxy). The design allows for stable stacking of three (3) trays into the PC-200.

Features

For bubble-free cold mounting
Quiet, pump-free operation

Accommodates a variety of mount shapes and sizes
Convenient stacking tray that allows for easy loading Large 8.5″ diameter x 7.5″ deep (216 x 191 mm) chamber Regulated, nominal operating pressure: 29 psi (2 bar)

Related Accessories

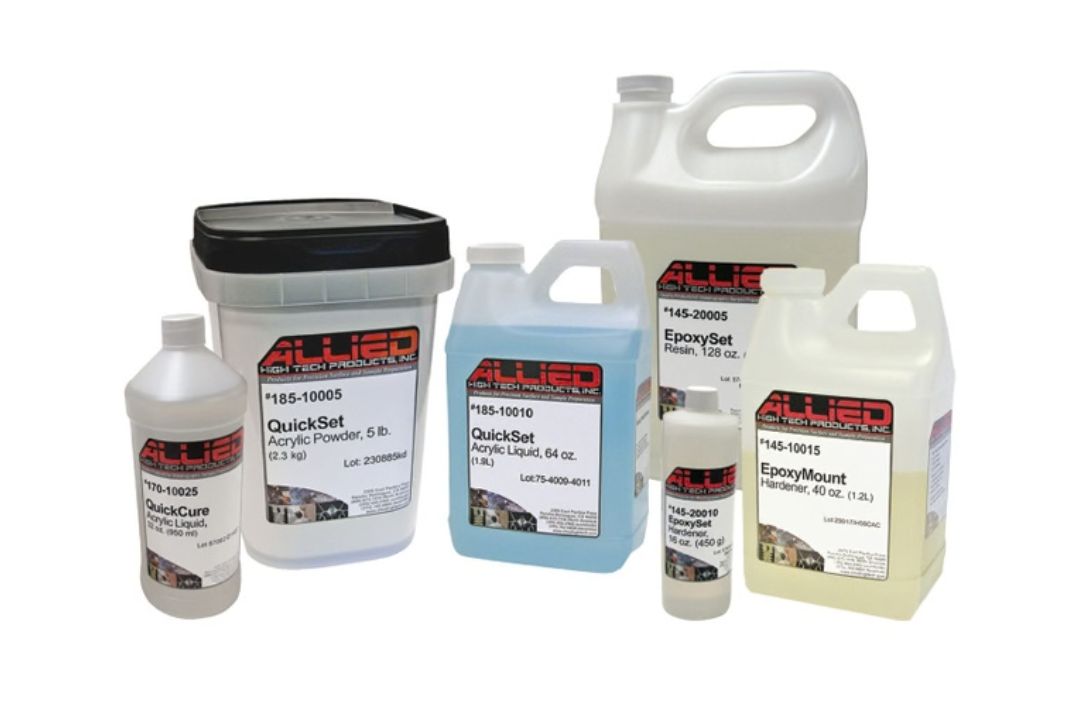

Cold Casting Resins

Cold/casting resins are available in different forms, epoxy, acrylic and light curing. Cold mounting is ideal for encapsulating porous or delicate samples which involves pouring a resin into a mold cup that produces the form to be held for preparation.

See Cold/Casting Resins >

Mounting Cups

These 2-part cups consist of a body and removable bottom cap that snaps into place and is removed to slide out and separate the cured mold from the cup. Silicone rubber mold cups are compatible with all resins and generally used for curing larger molds for larger samples

See Mounting Cups >
