BL-100
Overview

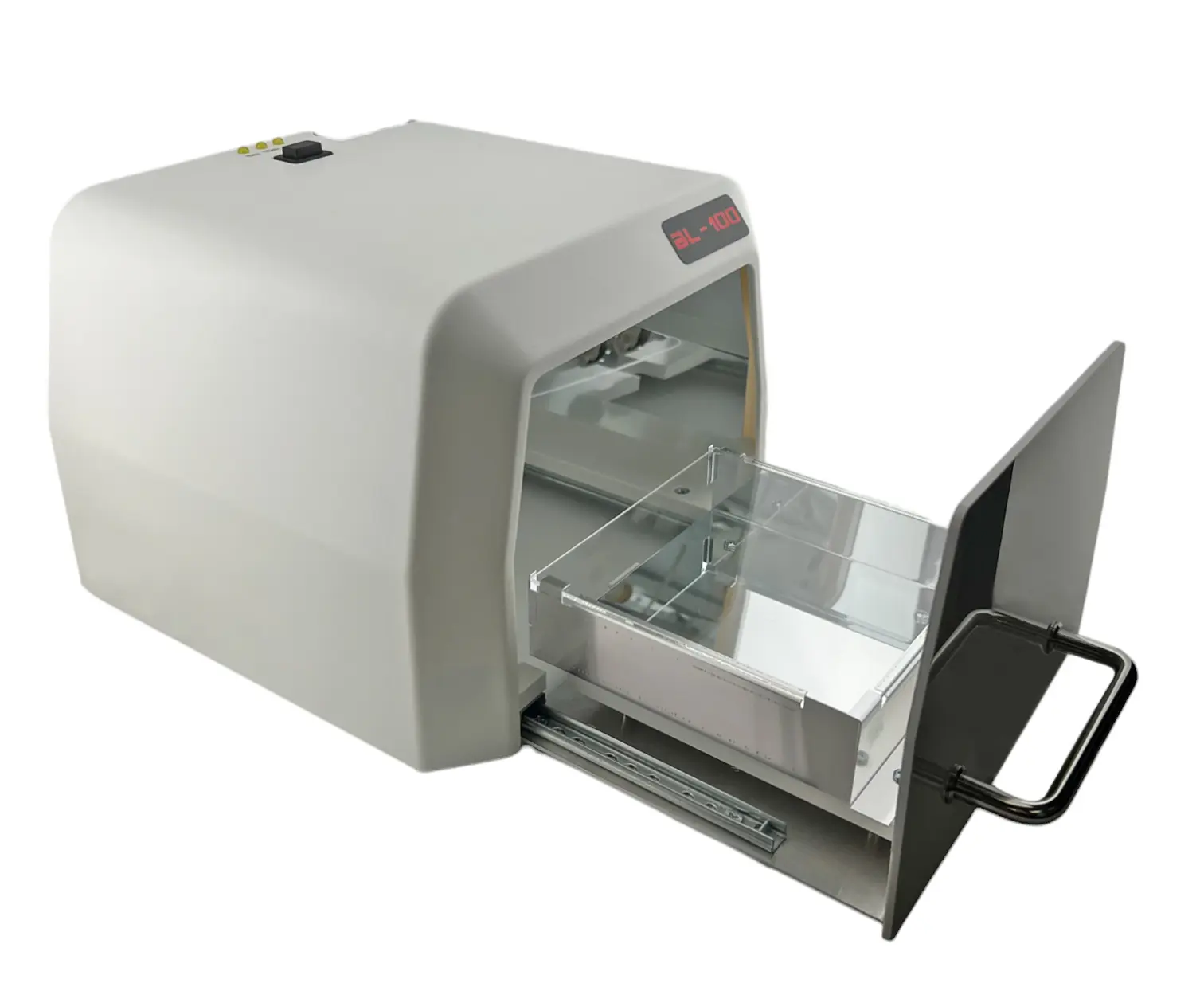

The BL-100 is a light chamber used for curing BL-Cure and UV-curing resins. When the sliding drawer is pulled out/open, the square glass platform measures 5 x 5 inches (125 x 125 mm) and molds up to 2.5-inches (63 mm) can fit inside.
It is supplied with a set of bulbs (OSRAM 9W/71-G23) and a country specific power cord.
The compact design measures 10.8″ x 9.2″ x 6″ (270 x 240 x 170 mm) and weighs 6.5 lbs. (~3 kg).
Features
- Manually operated saw for a wide variety of materials
- 10″ (254 mm) diameter blade capacity
- Cutting capacity: up to 3.75″ (95 mm) bar stock
- Powerful 3.5 HP (2600 W) stainless steel waterproof motor
- 5″ (127 mm) distance between blade and motor, allowing longer/larger parts to be sectioned
- Side port for cutting long samples
- Optional blade position laser indicator and electro-mechanical safety lock
Video
Related Products
TechCut 5x™
This equipment features a large, LED illuminated cutting compartment with an automatic, adjustable rate linear feed (y-axis) table. Two (2) table options provide versatility for a wide variety of applications and needs.
Abrasive Cut-Off Saw Blades
specially engineered for metallurgical sectioning. Aluminum oxide (Al2O3), silicon carbide (SiC), diamond and cubic boron nitride (CBN) abrasives are offered in various bond types for sectioning a wide variety of materials. Ranging in diameter of 9 inches (230 mm) to 14 inches (350 mm).
High Speed Oil Based Cutting Fluid
Use Maxi-Cut for speeds above 1,000 RPM, diluted 2-5% with water.
Details
Quick Slide Vice- can be positioned anywhere along the T-slots, and allow samples up to 3″ (76 mm) deep to be secured.
Chamber Cleaning- simply adjust teh valve to redirect coolant from the blade to the cleaning hose.
Vertical Adjusting Clamp-can be positioned in any orientation throughout the T-slots in the tables.
