PCB Microsectioning System
For Semi-Automatic Grinder/Polisher
Semiautomatic
High-Volume Rigid & Flex Coupon Preparation
Allied’s high-volume Printed Circuit Board (PCB) micro sectioning and analysis solution makes it easy to prepare and document high-volume microsections for compliance with IPC standards.
From pin insertion and mounting to grinding/polishing to an automated measurement and archiving system, Allied provides a complete solution.
- Download the PCB Microsectioning System Brochure
- PCB Microsectioning System Accessories
Features
- High-volume preparation of up to fifty-four (54) multi-layer coupons
- Complies with IPC TM-650, No. 2.1.1, Rev. F, Method B
- Includes Pin Insertion Press for PCB/Coupon Preparation System
- Includes Diamond Stop Height Gauge Assembly for setting diamond stop height of PCB Sample Holder
- For coupons with a 2 mm or 0.094″ Ø hole (uses 50 mm L pin)
- Universal design adapts to non-Allied Machines with Drive Adapter

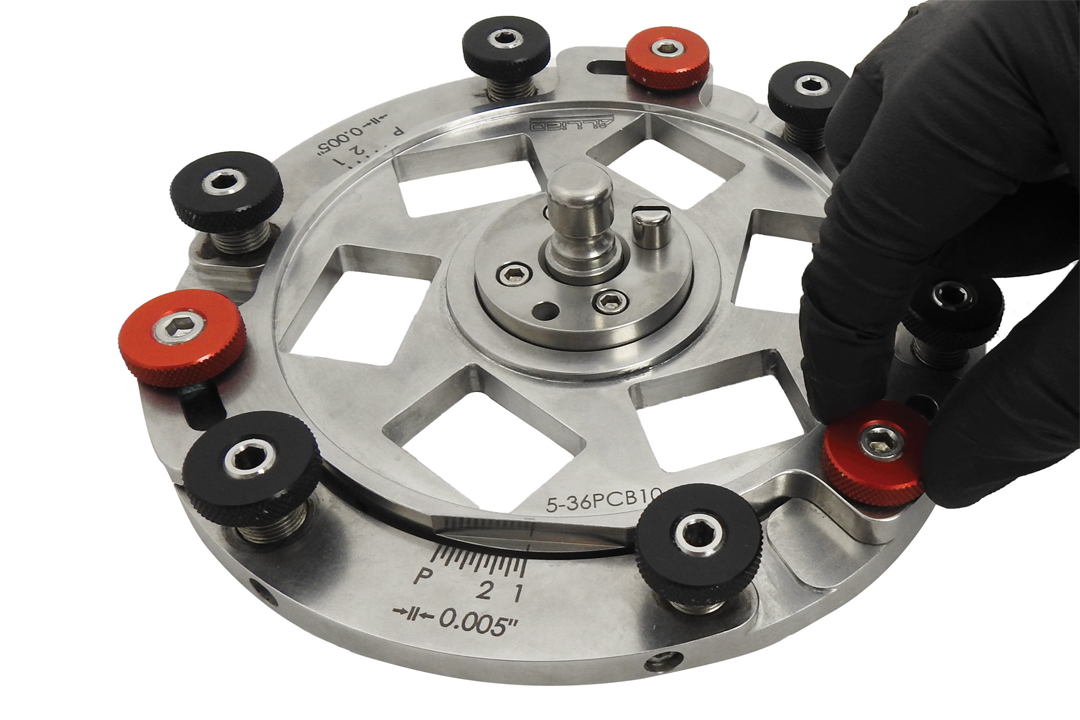

- Includes PCB Sample Holder with Adjustable Diamond Stops, 6-position
- Use with MetPrep 4x™ Grinder/Polisher with PH-4™ Power Head
Related Products
PCB Coupon Mold Cups

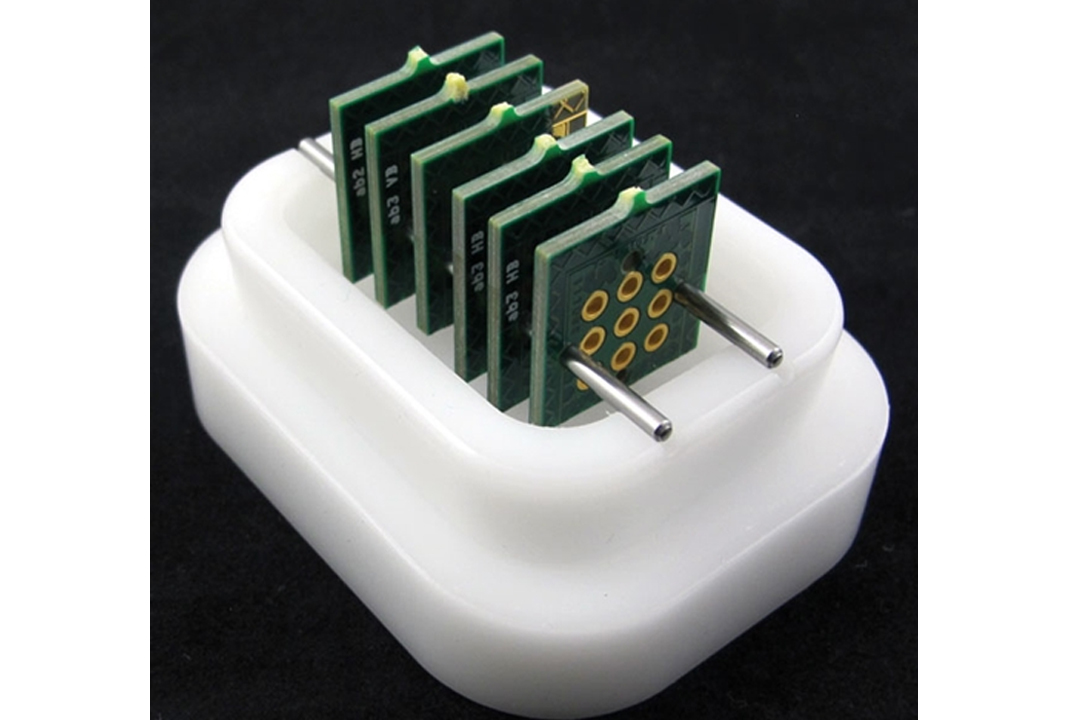

These two-part cups are used for encapsulating pinned coupons in acrylic resin and create mounts that fit into the 5-36PCB10 sample holder.
PCB Indexing Pins

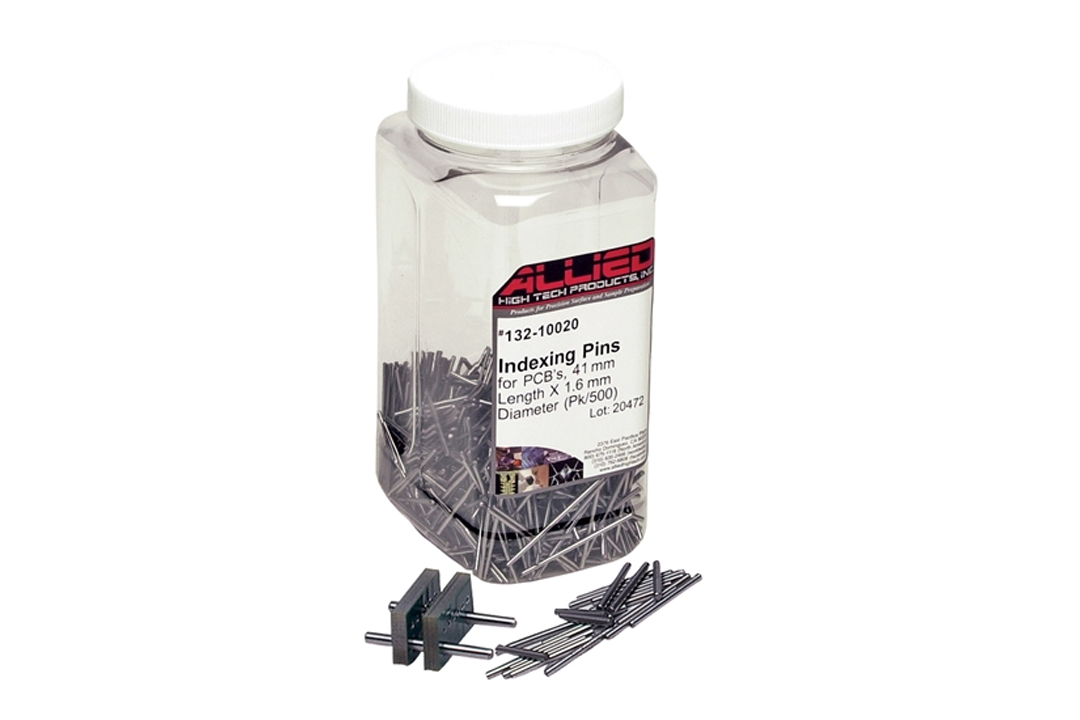

Used to align through-holes when encapsulating multiple printed circuit board samples in one mount.

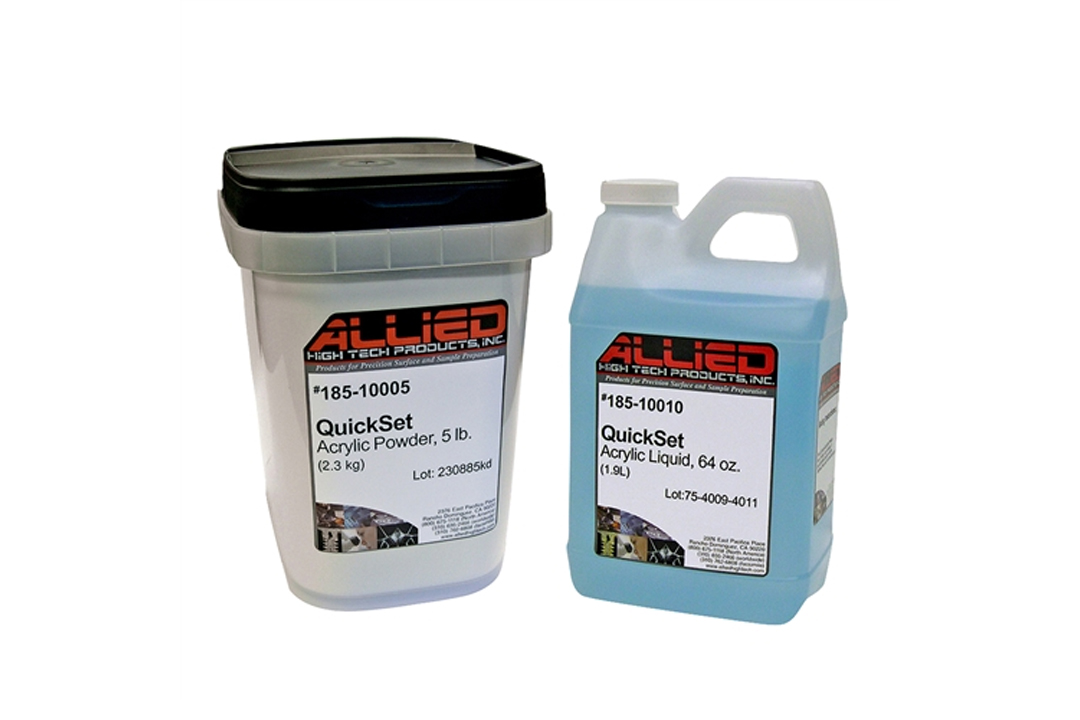

QuickSet Acrylic
Used to encapsulate a wide variety of specimens, especially PCB coupons and other electronic components.

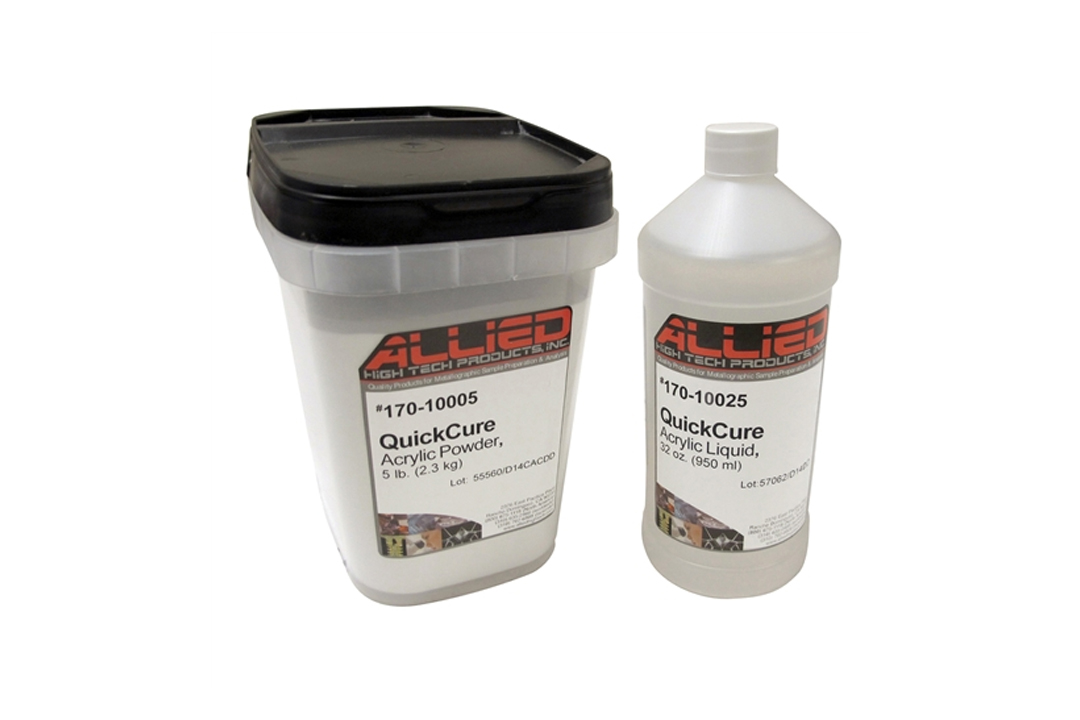

QuickCureAcrylic
When cured under pressure (>20 psi), it produces a clear, bubblefree mount. The longer cure time (15–20 min.) allows improved flow and penetration.
Details

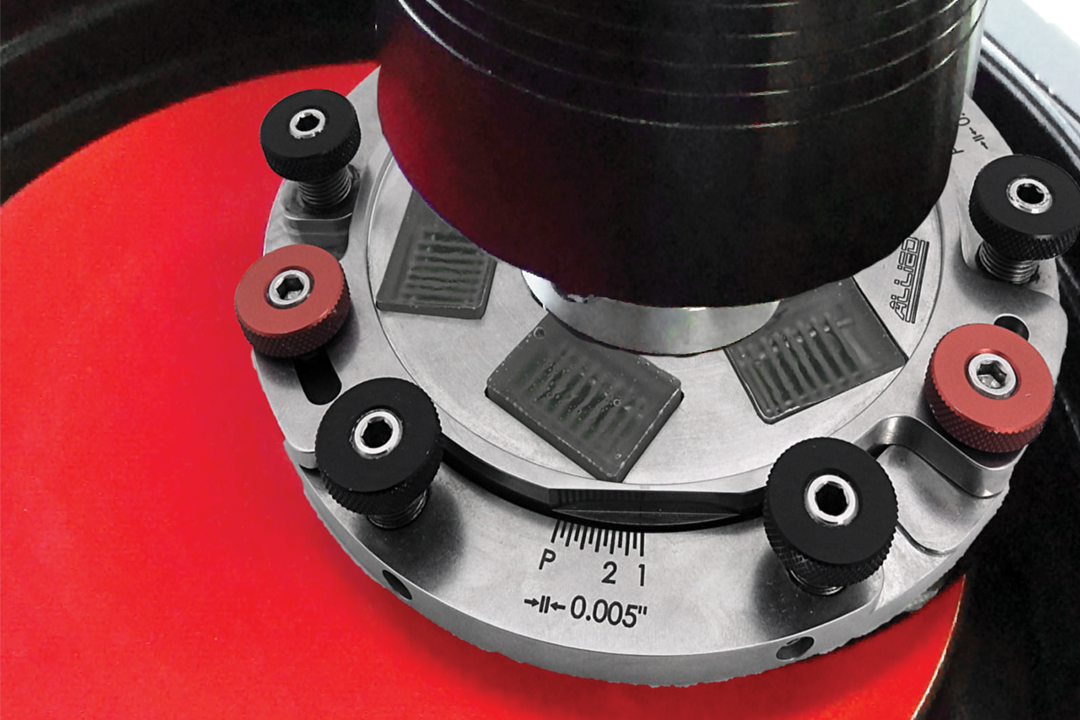

The MetPrep 4x™ grinding and polishing machines, with PH™ power heads, can be used with the PCB sample holder.

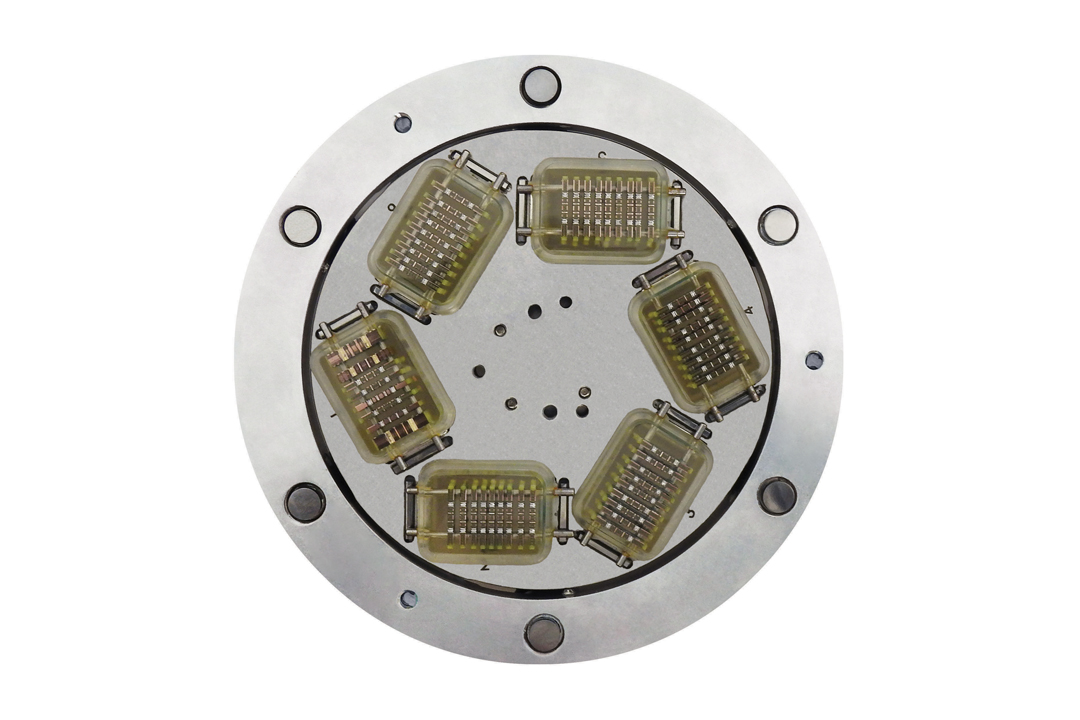

Magnetic mount retention allows easy removal without losing registration.
Allows three (3) or six (6) mounted coupon stacks.
