Hand Tools

Cross-Sectioning Unencapsulated Samples

Hand Tool

Specialized hand tools designed for controlled wedge polishing and cross‑sectioning for high‑resolution TEM sample preparation

The TEM Wedge Polisher and Cross‑Sectioning Tool are engineered for precise, repeatable sample preparation for transmission electron microscopy and advanced materials analysis. The TEM Wedge Tool enables controlled thinning to electron transparency, with rear micrometer heads that allow accurate radial or axial (wedge) angle adjustment for optimized material removal. Optional non‑rotating micrometer heads eliminate faceting of Delrin® feet, supporting consistent, artifact-free polishing. Cross‑sectioning and Pyrex® paddles attach via a cam‑locking system that requires no tools, allowing fast removal for inspection and exact repositioning throughout the process. The small Pyrex® contact footprint minimizes planarization time by reducing abrasive contact area, improving efficiency while maintaining precise control, making these tools ideal for high-resolution, preparation‑critical microscopy workflows.

Features

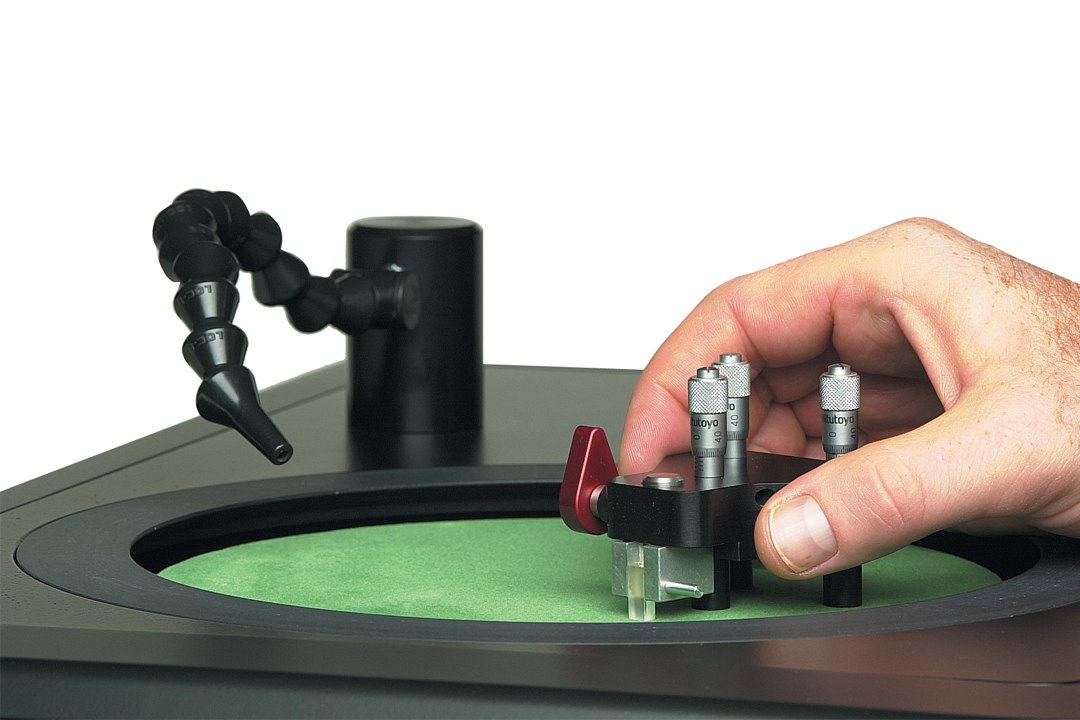

TEM Wedge Polisher

Lightweight anodized aluminum body for corrosion resistance

Cam-Lock lever can be mounted on the right or left side according to operator’s preference

Low profile fixtures fit under objectives in most microscopes
Aluminum cross-sectioning paddle fits into most SEMs without the need to demount the sample

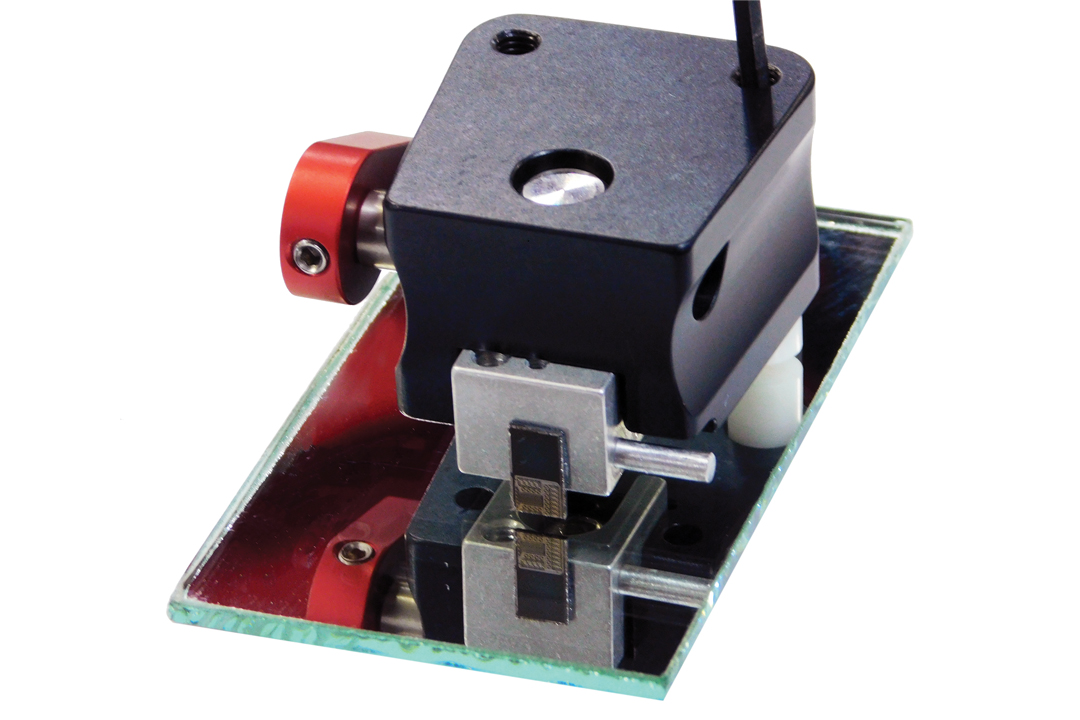

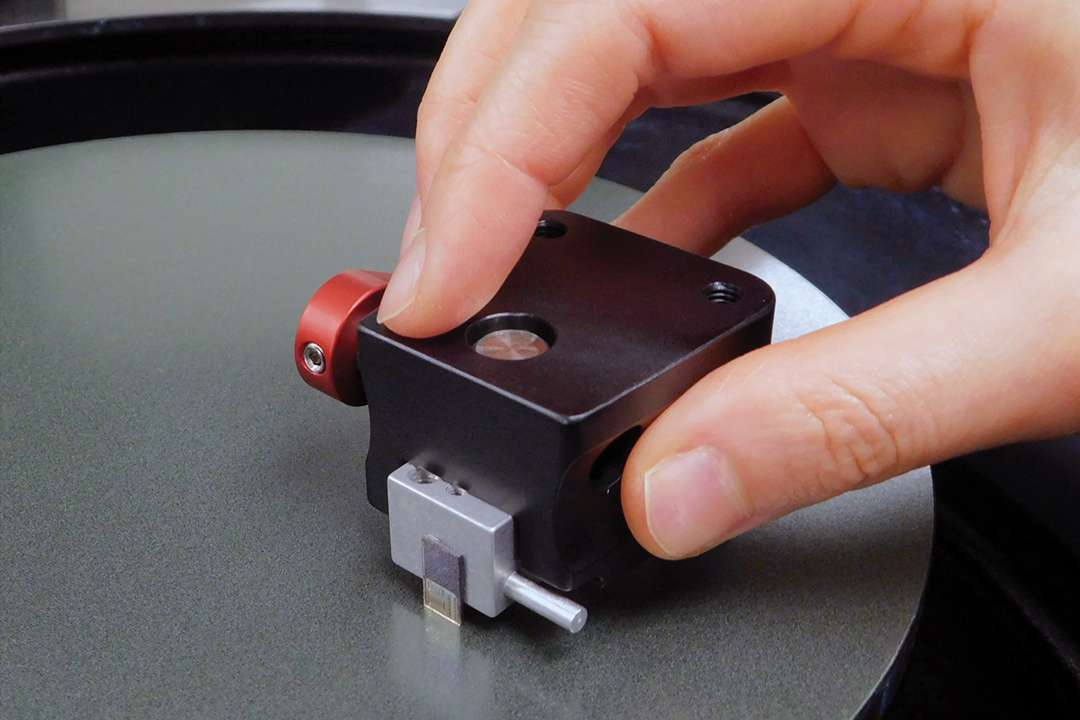

Cross-Sectioning Tool

Low profile, removable fixtures that fit under upright microscope objectives
Lightweight anodized aluminum body for corrosion resistance
Cam-Lock lever can be mounted on the right or left side according to operator’s preference
Low profile fixtures fit under objectives in most microscopes
Aluminum cross-sectioning paddle fits into most SEMs without the need to demount the sample
