CF-1™
Loading/Unloading System
Central Force Sample Holder
A pneumatically actuated loading station designed to reduce grinding time through uniform, repeatable mount alignment

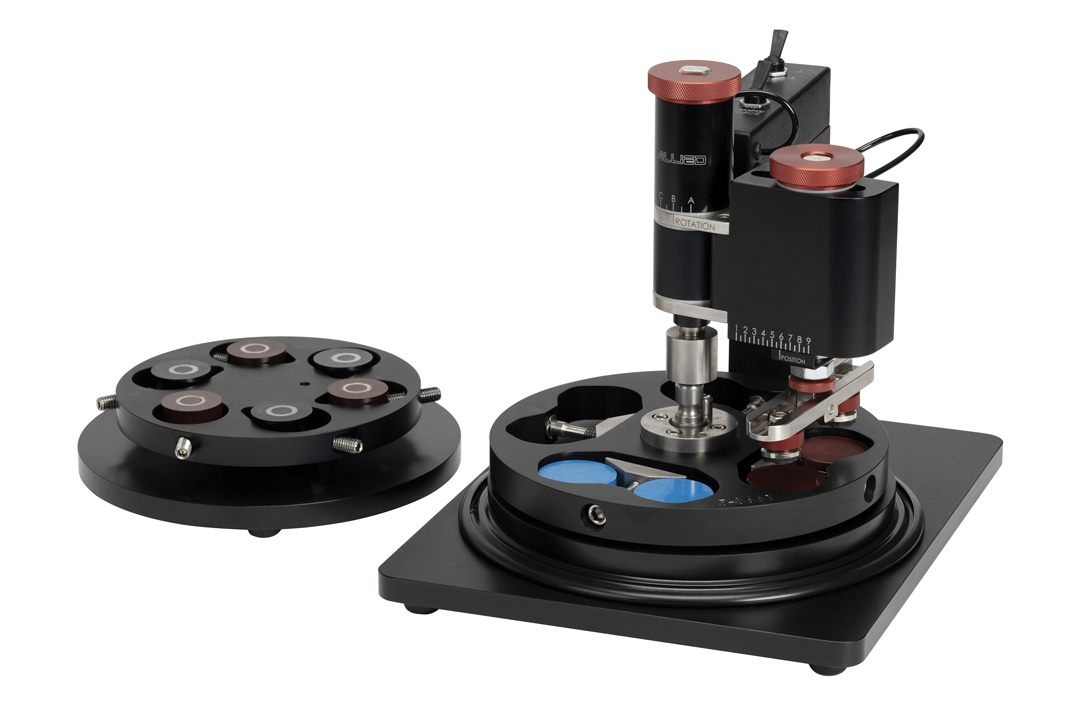

The CF-1™ central force loading station uses pneumatics to apply uniform downforce to align the mounts on the same plane in the sample holder, resulting in reduced grinding time. The rotating base provides convenient movement of the sample holder and equally sets the mount height for proper spacing. The pivot arm features a graduated scale for repeatable positioning which is adjustable using the two (2) large red knobs that are knurled for improved grip.
The unit requires compressed air like that provided to the power head. This is used to both secure the sample holder firmly in place and provide force to the pad to firmly secure the mount when tightening the sample holder screw(s).
The base system is supplied with a single applicator pad and unloading plate. The dual applicator accessory is sold separately and recommended for use with either dual-cavity or large cavity sample holders.
Features
- Compatible with all Allied central force sample holders (single, dual, and large mount) and any similarly shaped holders
- Pneumatic loading ensures mount/sample planarity
- Reduces initial planarizing/grinding process time and
consumable usage
- Rotating plates support rapid loading and unloading of
samples/mounts - Graduation scale on pivot arm assists with quick, repeatable loading when using different holders
- Designed for either right- or left-hand use
Related Products
QuickCure Acrylic
When cured under pressure (>20 psi), it produces a clear, bubble-free mount.
QuickSet Acrylic
Used to encapsulate a wide variety of specimens, especially PCB coupons and other electronic components.

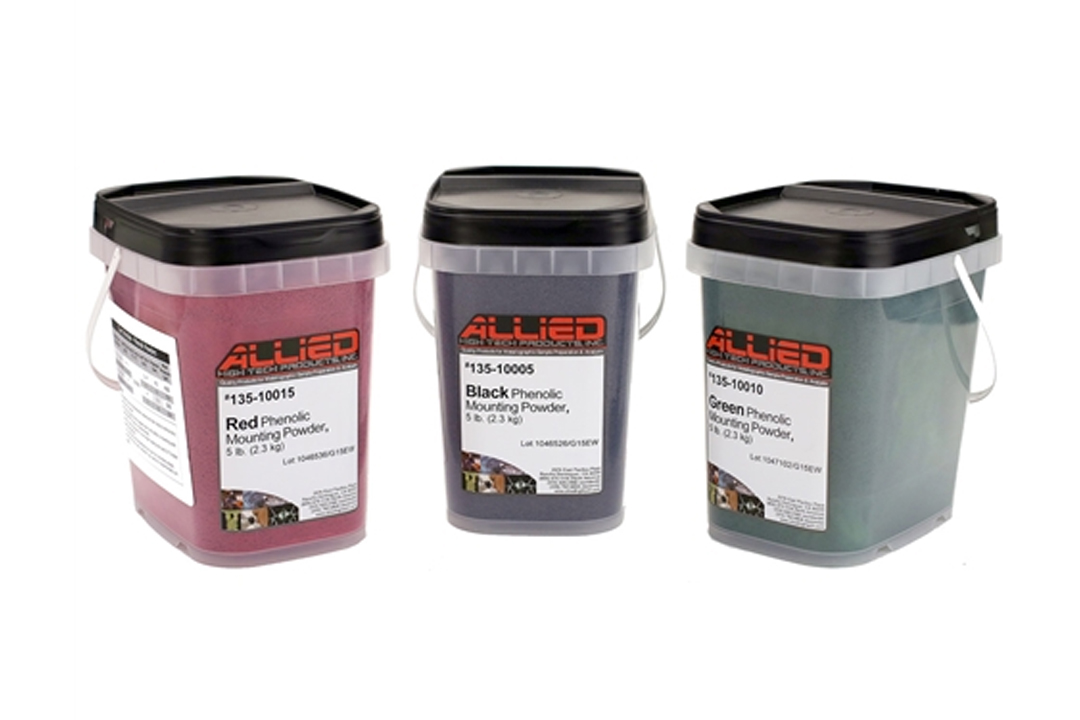

Phenolic Powders
Black, green and red phenolic powders are used for routine applications, when color coding for material identification or as backfill or more expensive powders.
EpoxySet
With very low viscosity, EpoxySet offers excellent flow and penetration.
Details

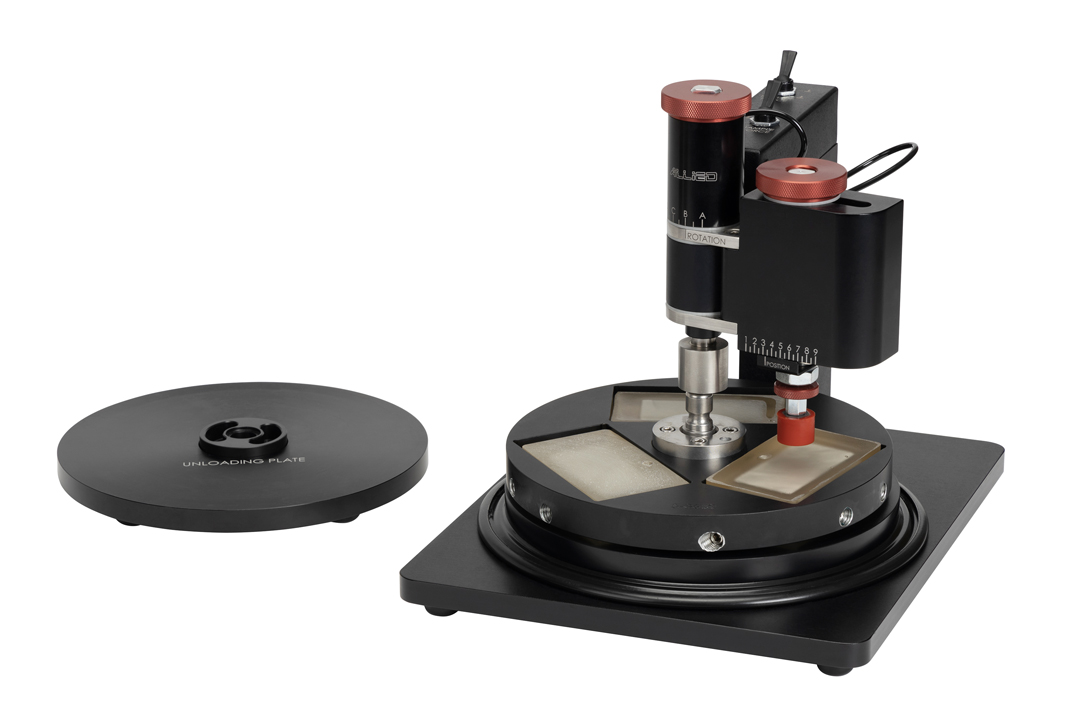

Rotating plate allows for convenient, rapid sample/mount loading.

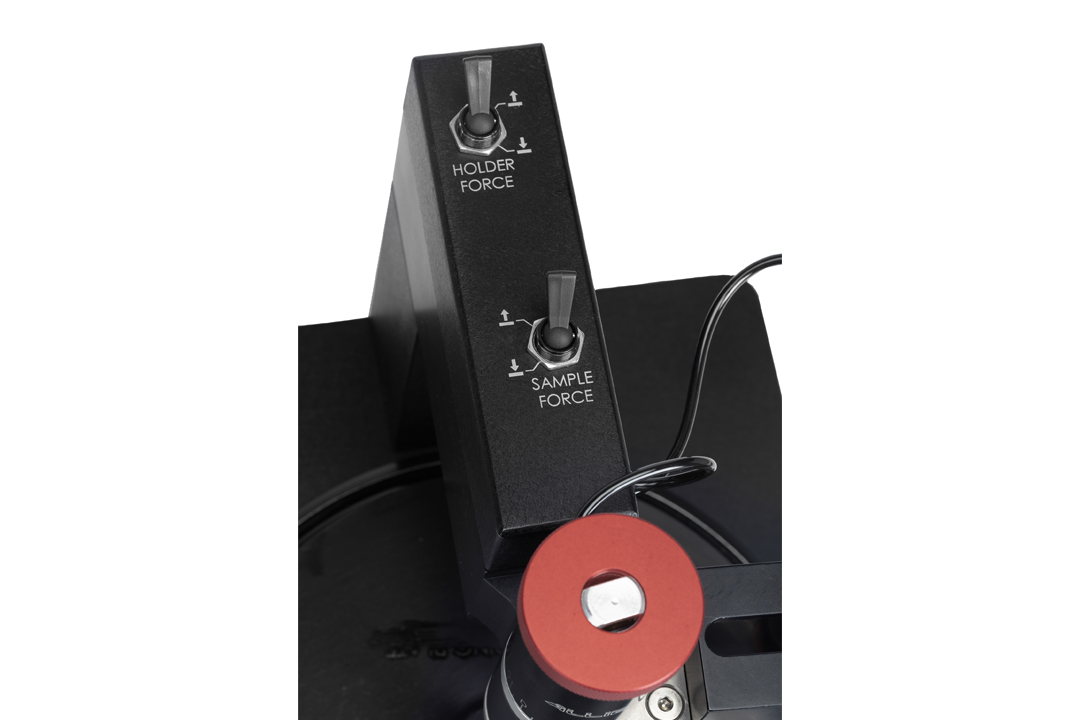

Independent air switches control smooth activation of holder and sample force.

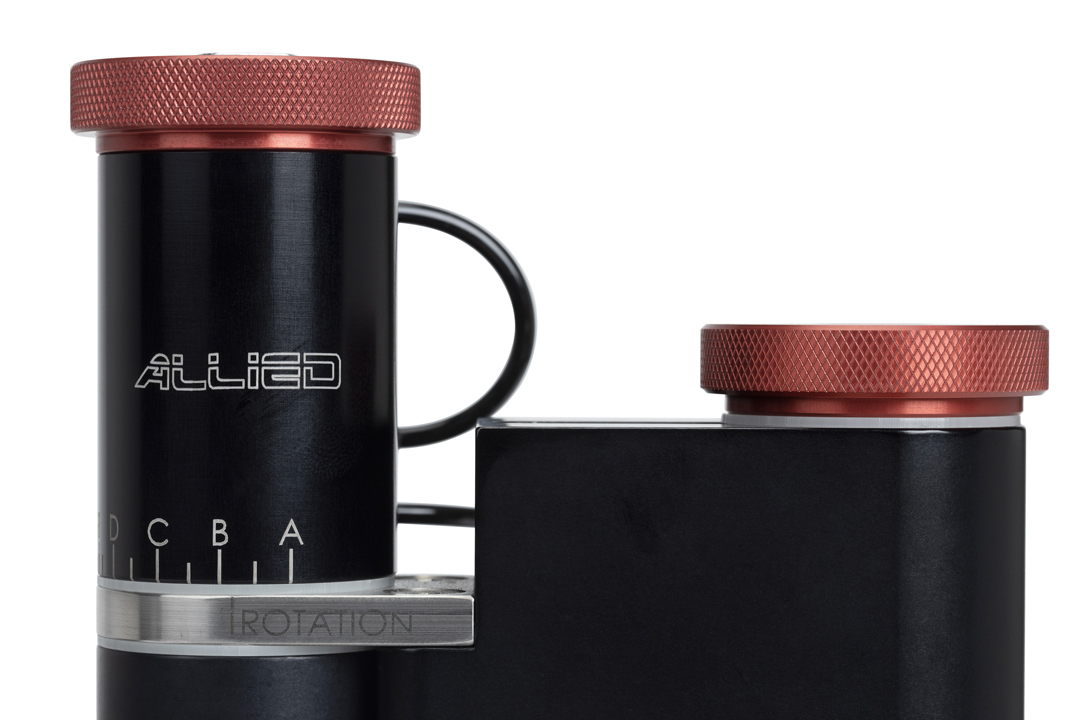

Highly adjustable range of motion supports either right-or-left-hand use.
