MetPrep 1x™
Grinder/Polisher
Manual
Powerful, reliable, and durable precision polisher for manual sample preparation

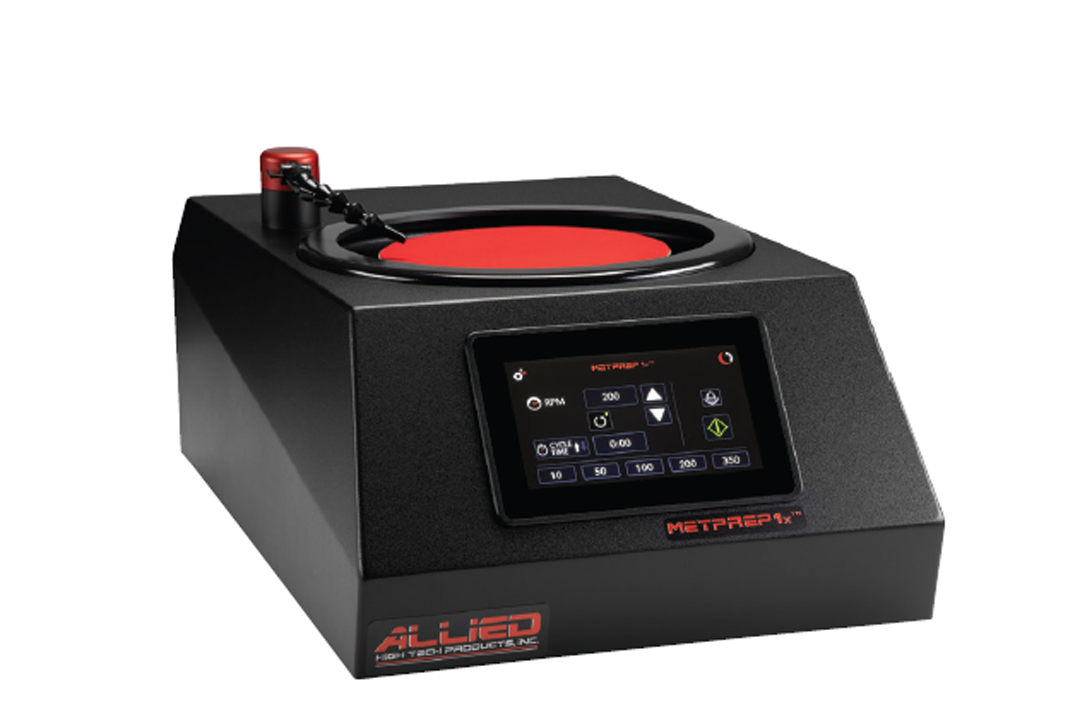

The MetPrep 1x™ precision grinding/polishing machine is excellent for manual preparation for standard applications, or when polishing delicate samples using handheld tools with lapping films that require extremely low RPM and consistent low-end torque. The 7″ color LCD touchscreen with keypad entry is used to control all functions with an intuitive interface optimized for efficiency. Five (5) user-defined preset buttons allow quick and easy RPM selections from 5-350 RPM in either clockwise or counterclockwise rotation. The timer function allows either count-up or countdown operation.
Durable: Engineered and constructed using precision machined hard-anodized aluminum and stainless steel components to provide maximum longevity.
Easy to use: Straightforward controls and user friendly functions for quick, repeatable operation.
Either precision, standard or magnetic 8″/203 mm or 10″/254 mm platens may be used with any plain/adhesive backed or magnetic system disc.
Features
- Ideal for unencapsulated preparation using hand tools/fixtures
- Utilizes either 8″ or 10″ (203 or 254 mm) platens
- Color LCD touchscreen to control all functions
- Variable platen speed: 5–350 RPM (5 RPM increments) with five (5) adjustable presets
- Clockwise or counterclockwise platen rotation
- Timer for count up or count down operation
- Powerful, quiet 0.7 HP (535 W) brushless DC motor
- Low profile, tabletop design
Related Products
Silicon Carbide Discs
Designed for metallographic applications to coarse and fine grind a wide variety of materials, these discs feature superior mineral grading, a unique resin system and a latex additive in the paper.
Diamond Lapping Film
Standard Diamond Lapping Film consists of precision graded diamond particles resin bonded to a uniform mylar film.

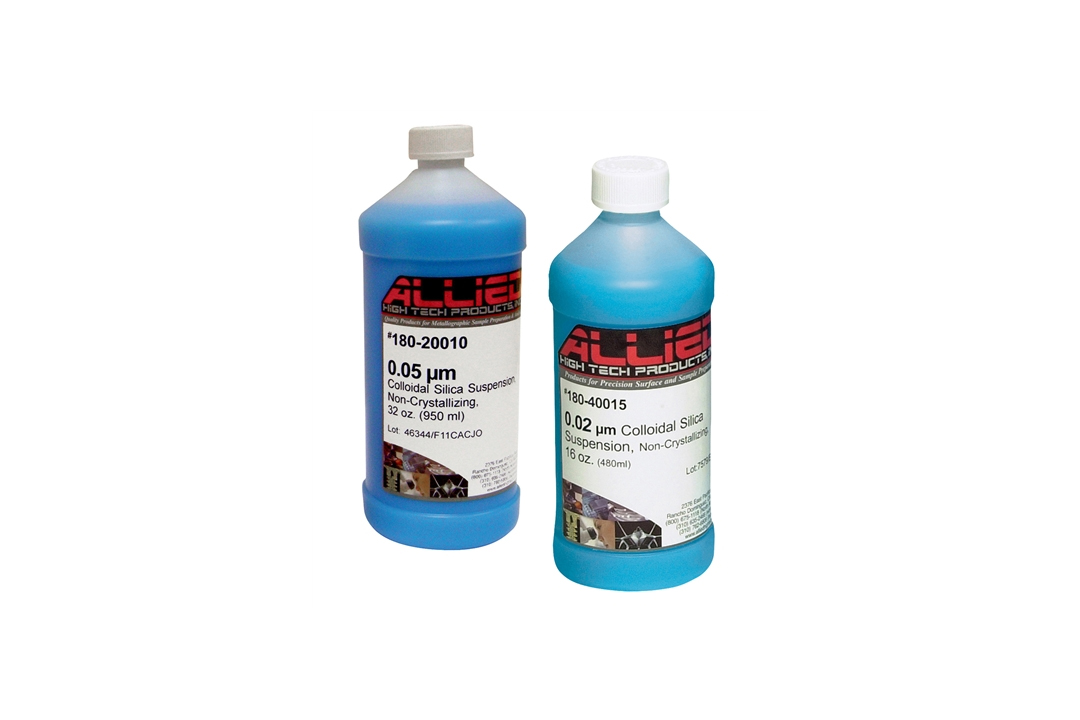

Non-Crystallizing Suspension
These suspensions feature a pH of 9.8 and produce an excellent surface finish on a variety of materials, especially non-ferrous metals, ICs and other electronic components.
Red Final C
Soft, dense, medium-nap, synthetic silk flock for use with diamond (3–0.25 μm), colloidal suspensions or alumina to provide an excellent final polish on a wide variety of materials.
Details

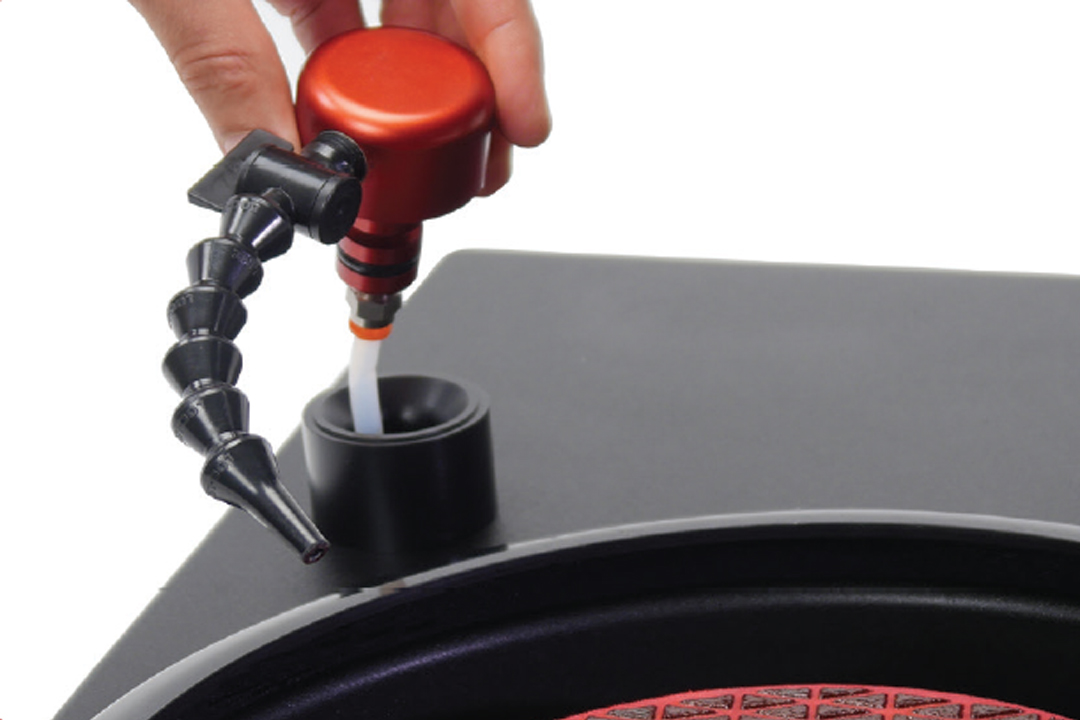

Retractable coolant nozzle allows quick and easy sample/bowl cleaning.

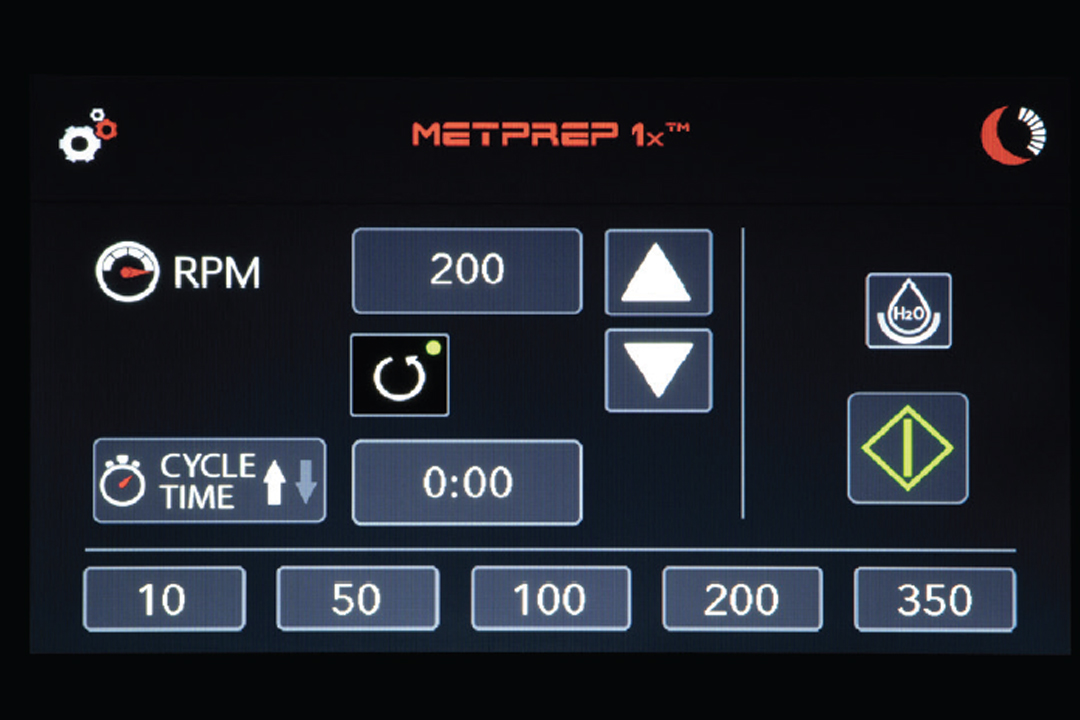

The 7″ color LCD touchscreen is used to control all functions and is extremely easy to navigate, allowing greater efficiency among users.
Quick-change platen design, adonized to resist wear and corrosion.
