M-Prep 5x™
Grinder/Polisher
Manual
Powerful, reliable, and durable polisher for manual sample preparation
The M-Prep 5x™ grinding/polishing machine is designed for manual sample preparation. The powerful, quiet motor provides constant high-torque output throughout the speed range, in either 10-500 or 20-1,000 RPM configurations. A 7″ color LCD touchscreen with keypad entry is used to control all functions with an intuitive interface optimized for efficiency. Five (5) user-defined preset buttons allow quick and easy RPM selections in either clockwise or counterclockwise rotation.
Durable: Engineered and constructed using precision machined hard-anodized aluminum and stainless steel components to provide maximum longevity.
Easy to use: Straightforward controls and user friendly functions for quick, repeatable operation.
Either standard or magnetic 8″/203 mm or 10″/254 mm platens may be used with any plain/adhesive backed or magnetic system disc.
Features
- Ideal for general preparation requirements
- Utilizes either 8″ or 10″ (203 or 254 mm) platens
- Color LCD touchscreen to control all functions
- Two speed range options: 10–500 RPM or 20–1,000 RPM with five (5) adjustable presets
- Clockwise/counterclockwise platen rotation Powerful, quiet 0.6 HP (440 W) brushless DC motor Low profile, tabletop design
- Powerful, quiet 0.6 HP (440 W) brushless DC motor
- Low profile, tabletop design
Related Products

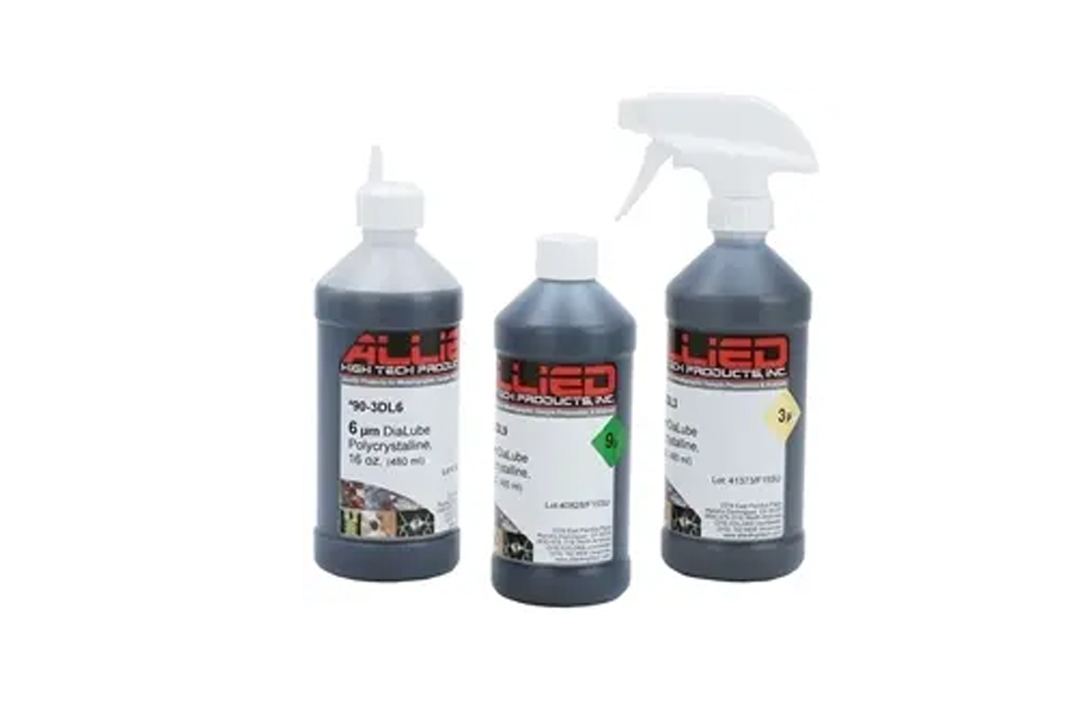

DiaLube
DiaLube is a water soluble blend of polycrystalline diamond suspension and propylene glycol based lubricant.

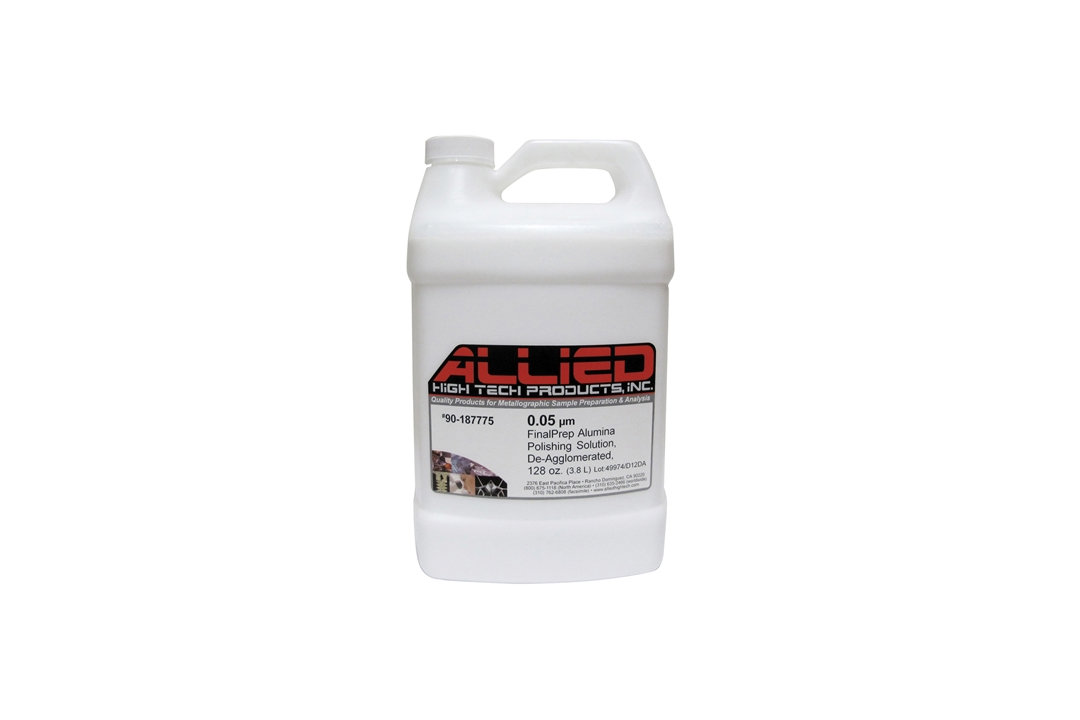

FinalPrep Solution
FinalPrep is a de-agglomerated, polycrystalline alumina solution excellent for final polishing applications on nearly any material.
DiaGrid Diamond Discs
Recommended for hard-to-grind materials, these discs feature diamond particles either nickel plated or resin bonded in raised patterns that provide increased cutting rates, enhanced cooling and efficient removal of debris.
Gold Label Cloths
Dense, uniquely woven nylon, extremely durable for use with diamond (15–3 μm).
Details

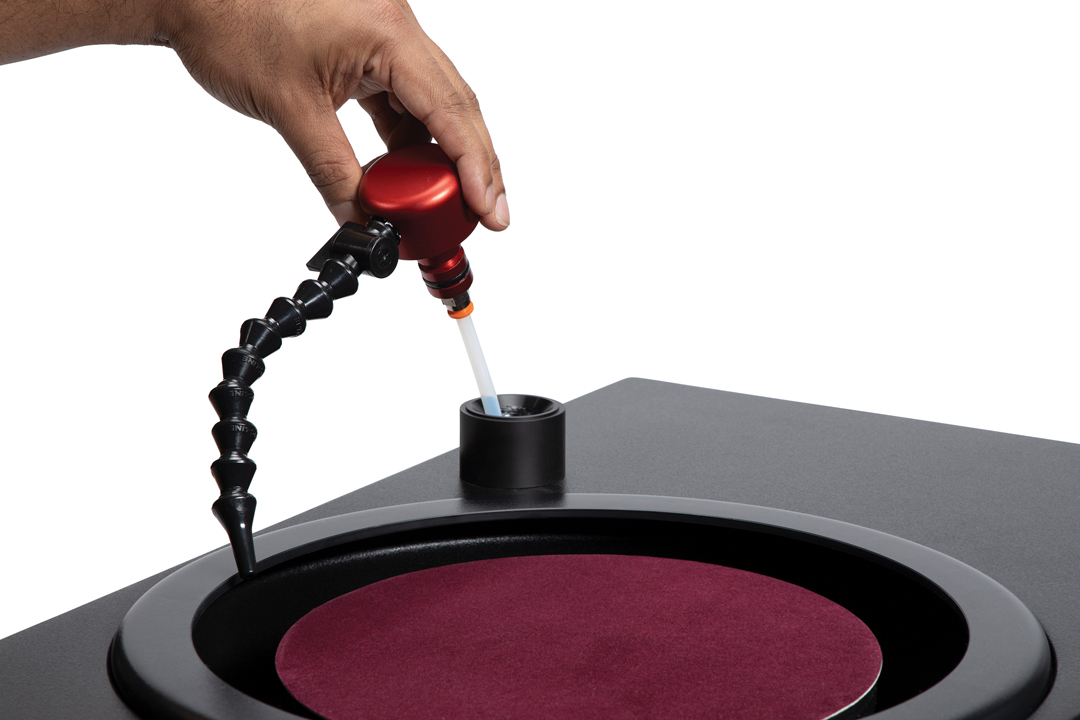

Retractable Coolant Nozzle Allows Quick & Easy Sample & Bowl Cleaning

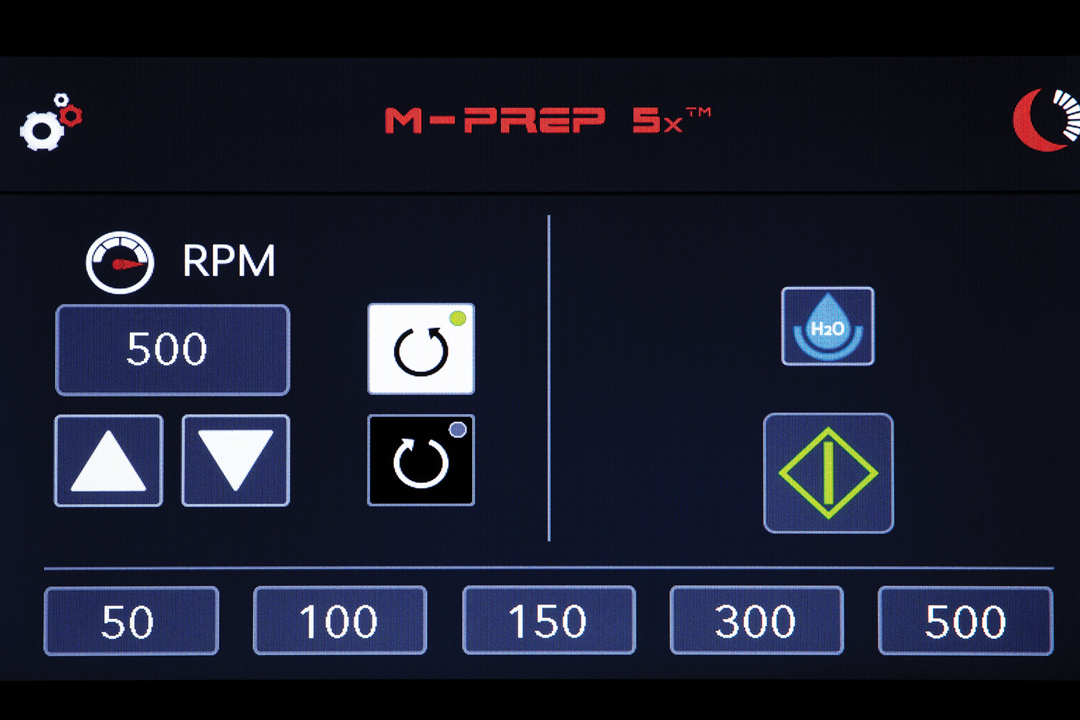

Intuitive Controls & User Friendly Functions

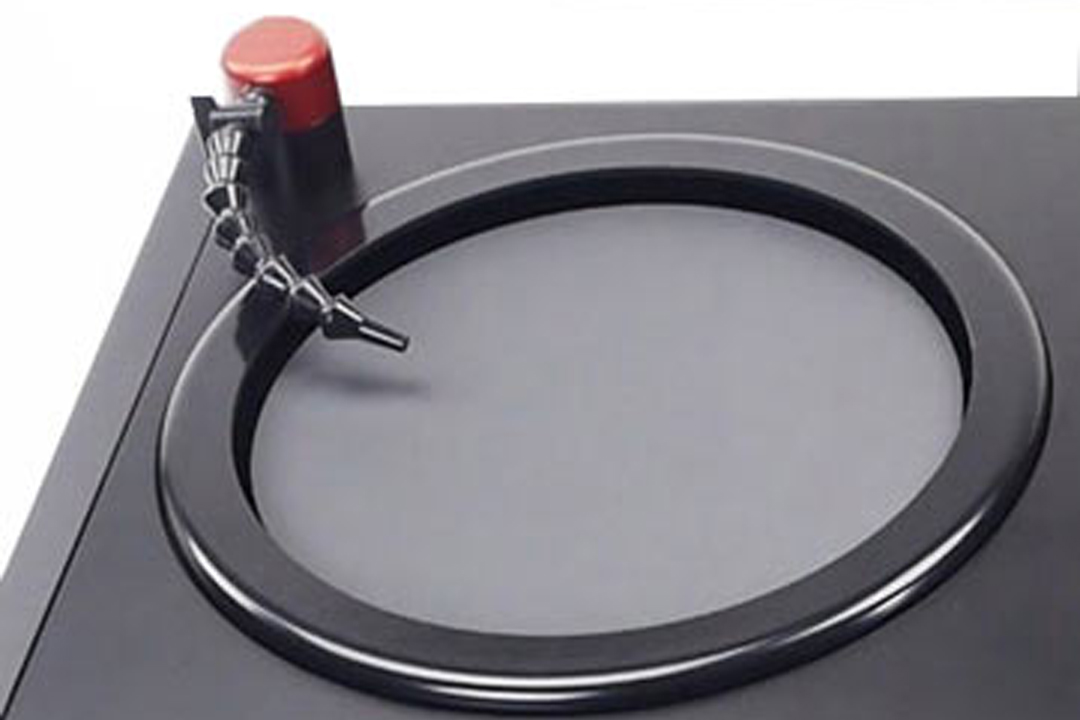

Quick-Change Platen Design, Anodized to Resist Wear & Corrosion
