ID-5x™

Integrated Fluid Dispenser

Automatic

A programmable, five-position fluid dispenser for precise, unattended application of polishing solutions and lubricants.

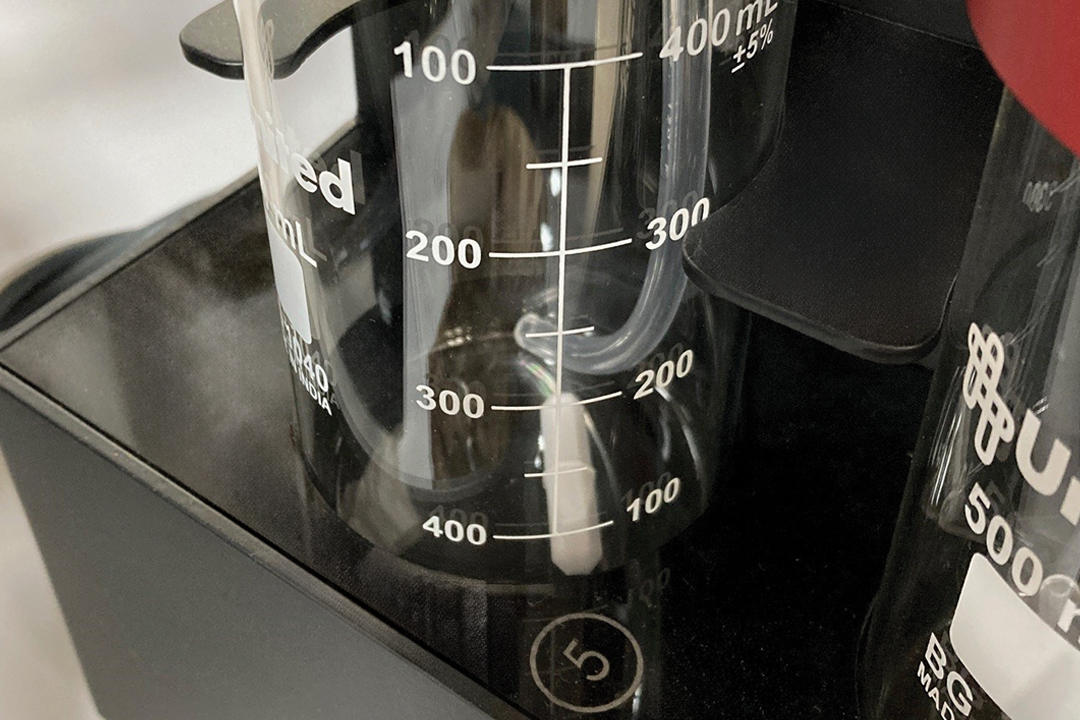

The ID-5x™ fluid dispenser provides automatic, unattended application of abrasive polishing solutions and lubricants. This five (5) position dispenser connects to the back of the MetPrep 3x™ and MetPrep 4x™ grinders/polishers, and is controlled and programmed through the touchscreen. Positions 4 and 5 feature high-speed pumps for dispensing colloidal solutions, and a magnetic stirring function for use with polishing slurries that normally settle.

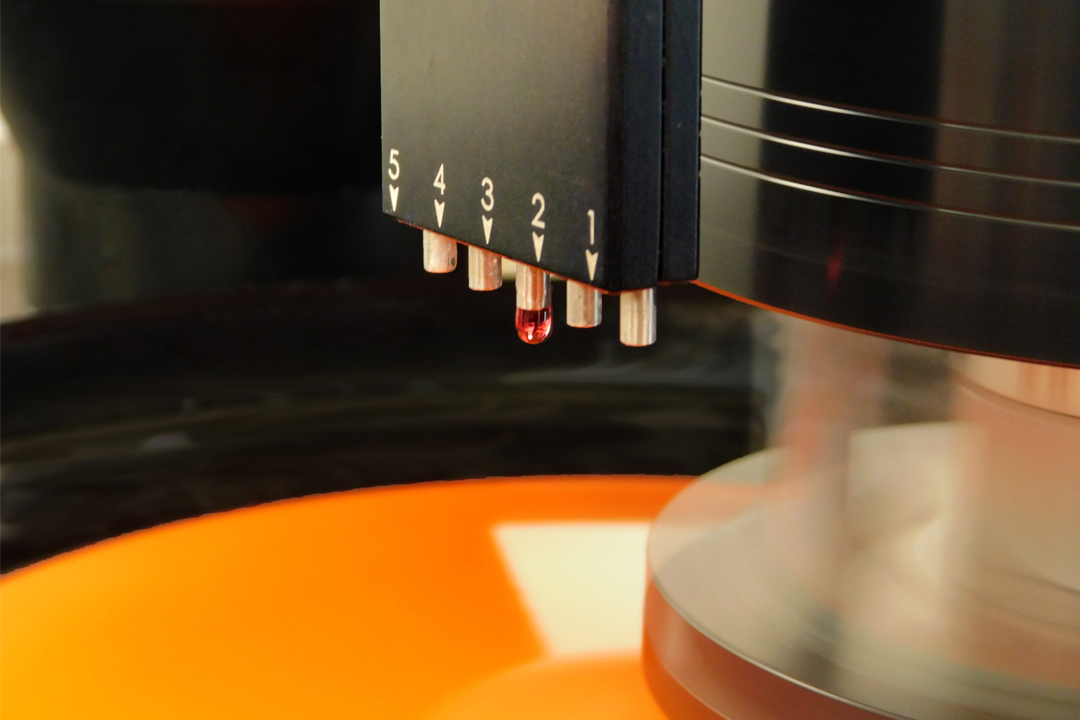

The integrated dispenser (ID) features a pivoting manifold mounted on the powerhead to position the dispensing nozzles so liquids clear the sample holder.

ID-5x™ Integrated Fluid Dispenser Video

Features

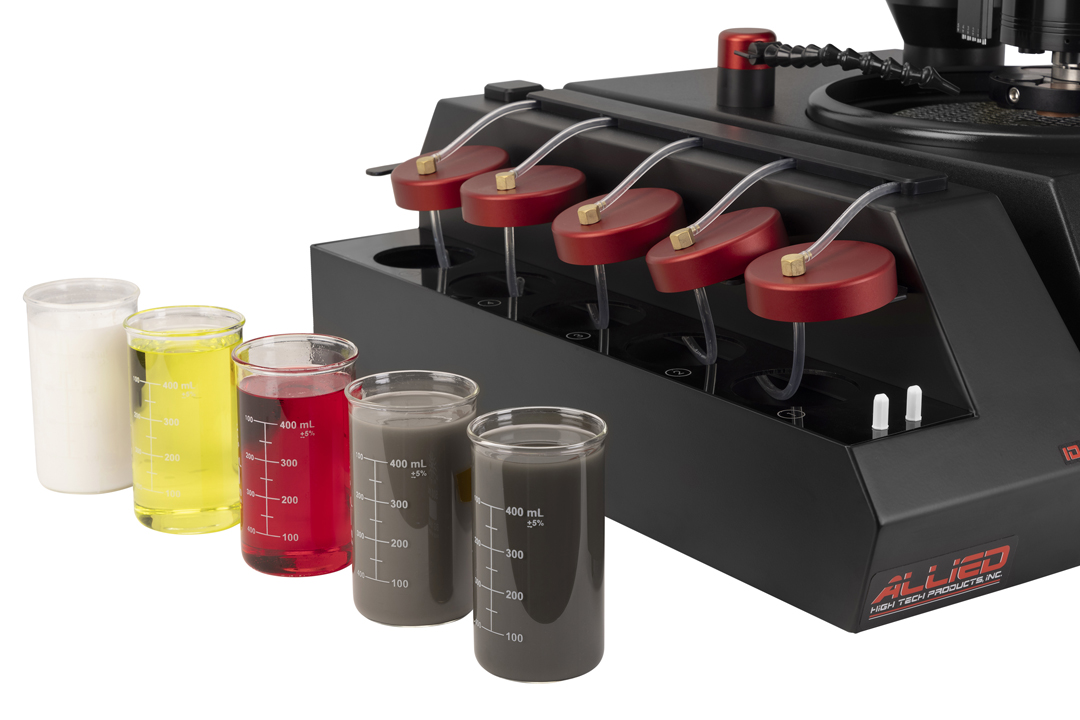

Five (5) dispensing positions, 16 oz. (500 mL) capacity
Provides repeatable fluid dispensing for consistent results
In-cycle priming that allows temporary “full rate” dispensing during use
Pump reverse after cycle to prevent dripping/contamination
Pulse duration: 0.5 – 6 seconds, 0.1 second increments
Positions 4 & 5 offer high speed pumps for oxide polishing, rinse/flush function to eliminate clogging

Dispenses fluids based on operator’s input values (pulses/minute, pulse length)
Integrates with MetPrep 3x™ and MetPrep 4x™ grinders/polishers equipped with PH-3™, PH-4™ or PH-6™ powerhead
Pre-dosing function provides option to “charge” the cloth at the beginning of each cycle
Pulse frequency: 1 – 10 per minute
