AD-5™

Automatic Fluid Dispenser

Stand Alone

A standalone, programmable fluid dispenser engineered to deliver consistent, unattended polishing solutions.

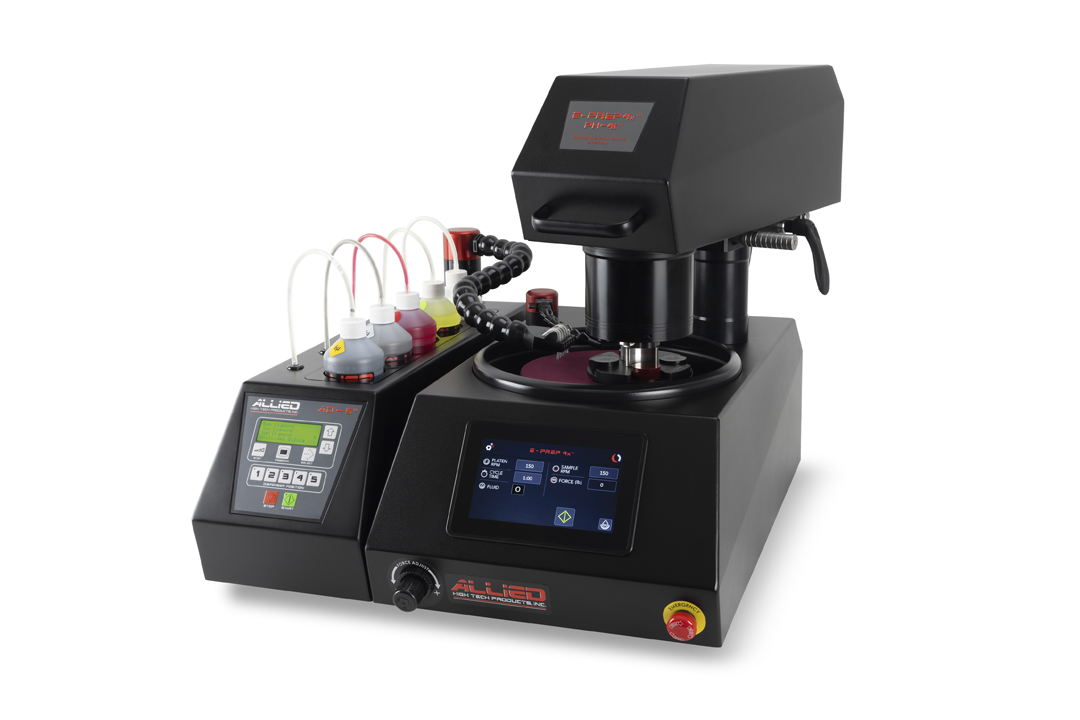

The AD-5™ fluid dispenser provides automatic, unattended application of abrasive polishing suspensions and lubricants. Its functions are controlled through Allied’s MetPrep 3™, MetPrep 4™, DualPrep 3™ or MultiPrep™ systems, and can also be used with ANY brand polishing machine as a standalone system.

Timed, volume-controlled, variable frequency dispensing delivers reproducible results by eliminating inconsistencies between operators. This increases productivity and efficiency, while reducing consumables usage. Intuitive menu navigation and simple logic programming make the dispenser easy to use.

The AD-5™ features five (5) dispensing positions, two of which include a flush cycle to prevent clogging when using colloidal suspensions. Peristaltic pump technology offers mist-free drip delivery to the polishing surface.

AD-5™ Automatic Fluid Dispenser Video

Features

Five (5) dispensing positions, 16 oz. (500 mL) capacity; 128 oz (3.8 L) adapter kit available
Remote function enabling seamless integration and automatic activation with Allied’s grinding and polishing systems
Local function to allow standalone operation with any grinder/polisher
Pulse frequency: 1-10 per minute
In-cycle priming that allows temporary “full-rate” dispensing onto polishing surface
Pre-start charging of new/dry polishing cloths
Two (2) positions with high-speed pumps for oxide polishing

User-defined menu labeling (abrasive type & size, lubricant, cloth, material, and menu name)
Pump reverse after cycle to prevent dripping/contamination
Pulse duration: 0.5 – 6.0 seconds (0.5 second increments)
One-touch priming function for quick, initial charging of new cloths
One-touch activation independent of menu for simple operation
Allows dispensing of colloidal suspensions with rinse/flush function to avoid clogging

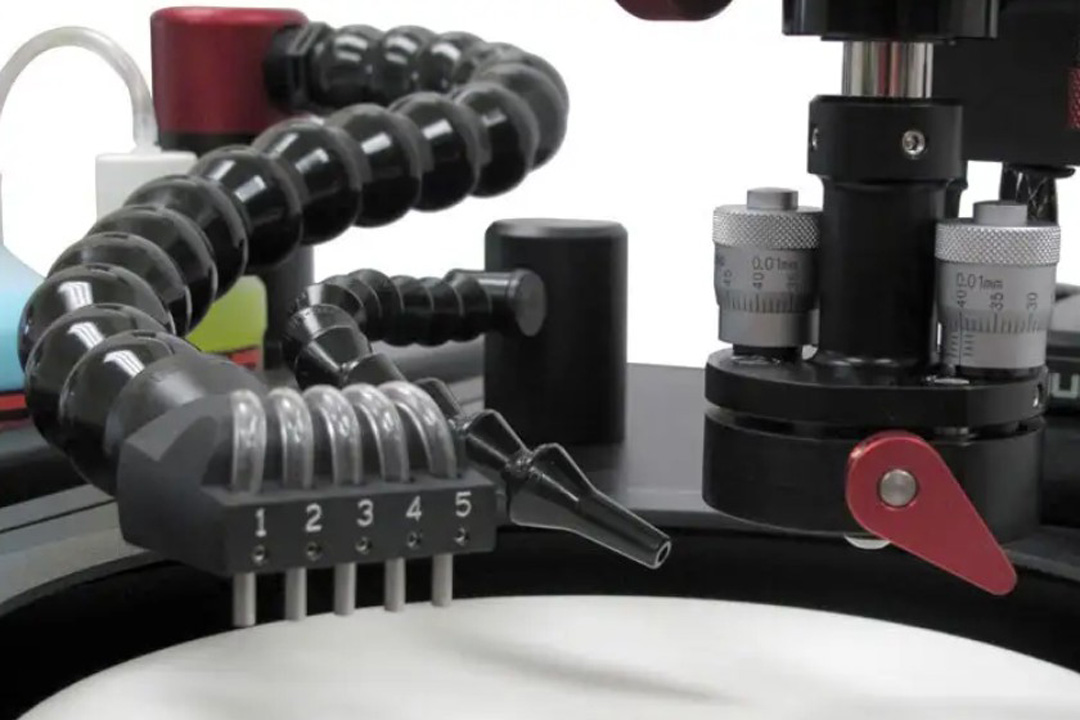

Peristaltic pumps offer mist-free drip dispensing

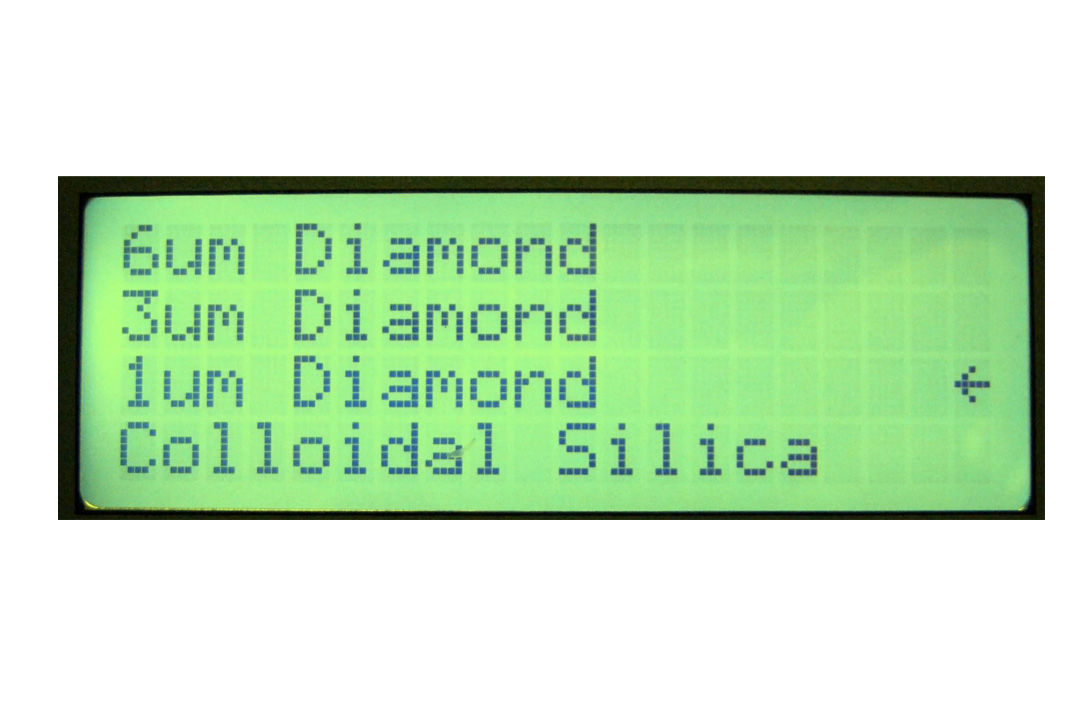

Backlit 4-line LCD
